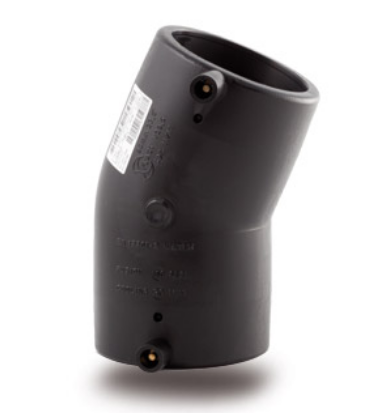

110mm HDPE 22,5° PN10 EF Elbow

HDPE 22.5° PN10 electrofusion (EF) elbow is a high-density polyethylene (HDPE) fitting designed to change the direction of fluid flow by 22.5° in medium-pressure piping systems. With a PN10 rating, it is suitable for systems operating up to 10 bar pressure.

Equipped with electrofusion (EF) technology, the elbow is welded directly to HDPE pipes, creating a permanent, leak-proof connection. It is ideal for drinking water, wastewater, irrigation, and industrial piping, offering durability, corrosion resistance, and long-term reliability.

Technical Specifications

Type: 22.5° Electrofusion Elbow (EF Elbow)

Material: HDPE (High-Density Polyethylene)

Pressure Rating: PN10 (10 bar)

Connection Type: Electrofusion (EF)

Angle: 22.5°

Application: Water supply, irrigation, industrial piping, wastewater

Standards: ISO 4427, PE100 / PE80 compliance

Temperature Range: -40°C to +60°C

Key Features

✔ Provides a precise 22.5° directional change
✔ Permanent, leak-proof electrofusion connection
✔ Resistant to corrosion, chemicals, and abrasion
✔ Durable and long-lasting
✔ Suitable for potable water, wastewater, and industrial fluids

Applications

Drinking water distribution networks

Wastewater and drainage systems

Industrial piping applications

Irrigation and agricultural pipelines

Municipal and civil engineering projects

Advantages

Handles medium-pressure applications up to 10 bar

Permanent, leak-proof EF connection

Corrosion-resistant and durable

Maintains system integrity under operating pressure

Quick and secure installation using electrofusion equipment
