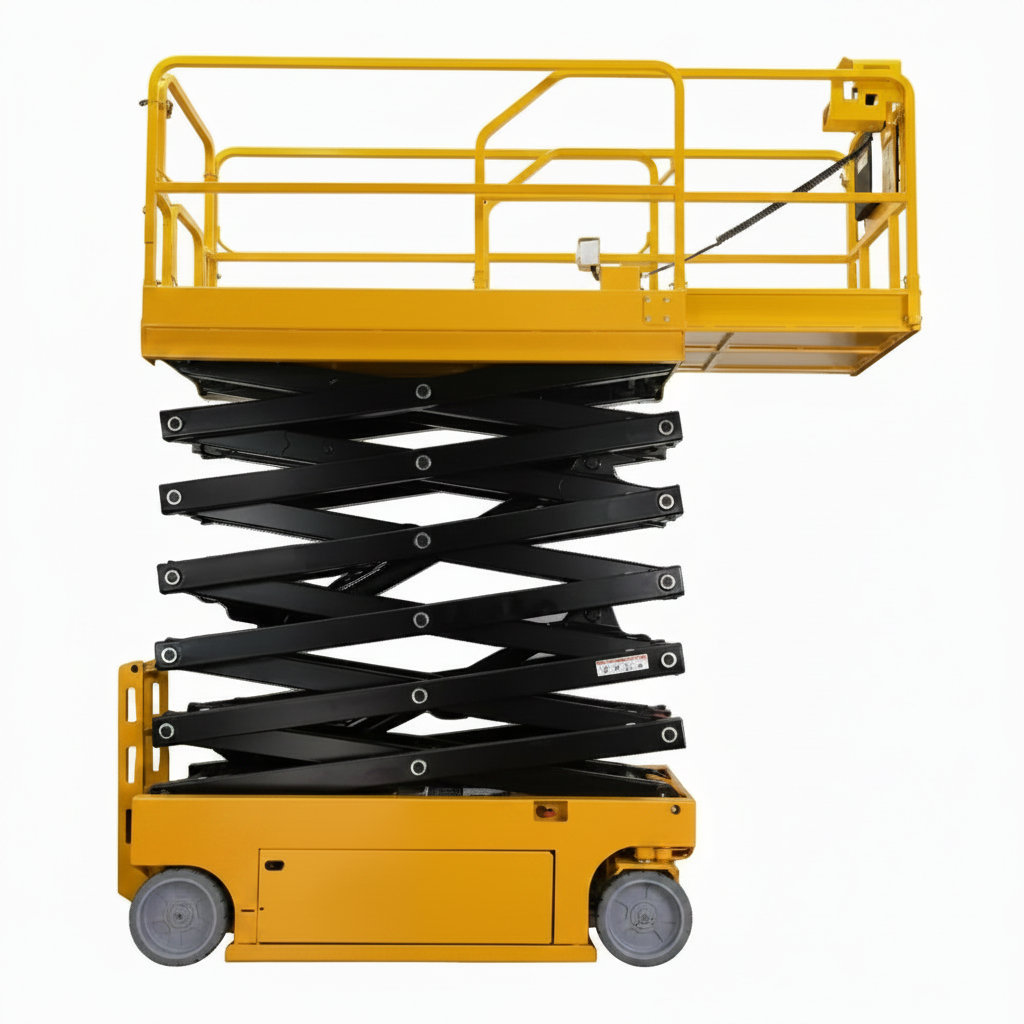

12+2m Self-Propelled Electric Scissor Lift
- Regular price
- $23,000.00
- Sale price
- $23,000.00
- Regular price
Tax included.
Shipping and Delivery Process
Return Process
Product Details
High-performance self-propelled electric scissor lift with 320 kg capacity for safe, efficient elevated work indoors and outdoors. Proportional control, dual-drive system, extendable platform, and compact zero-radius turning for industrial use.
Technical Specifications
- Working Height: 12 + 2 m
- Platform Height: 12 m
- Load Capacity: 320 kg (Extension: 120 kg)
- Max. Workers: 2 Indoor / 1 Outdoor
- Drive Speed Stowed: 0–3.2 km/h
- Drive Speed Raised: 0–0.8 km/h
- Lift and Lower Time: 52 sec
- Gradeability: 25%
- Max. Slope: 3°
- Turning Radius Inside: 0 m / Outside: 2.2 m
- Control: Proportional Control System
- Drive: Dual Front Wheel Drive
- Brake: Dual Rear Wheel Brakes
- Tire Size: 381 × 129 mm
Dimensions
- Platform Size: 2.25 × 1.15 m
- Total Length: 2.4 m
- Total Width: 1.15 m
- Height Rails Up: 2.6 m
- Height Rails Down: 1.98 m
- Platform Extension: 1 m
- Guardrail Height: 1.1 m
- Wheelbase: 1.85 m
- Ground Clearance Stowed: 95 mm
- Ground Clearance Raised: 20 mm
Power System
- Motor Power: 4.5 kW
- Battery: 240 V/Ah
- Charger Input: 100–240 VAC
- Charger Output: 36 A
- Control Voltage: 24 VDC
- Hydraulic Capacity: 22 L
- Total Weight: 2,950 kg
Zero inside turning radius for tight spaces. Emission-free electric operation. Eliminates scaffolding setup time.
