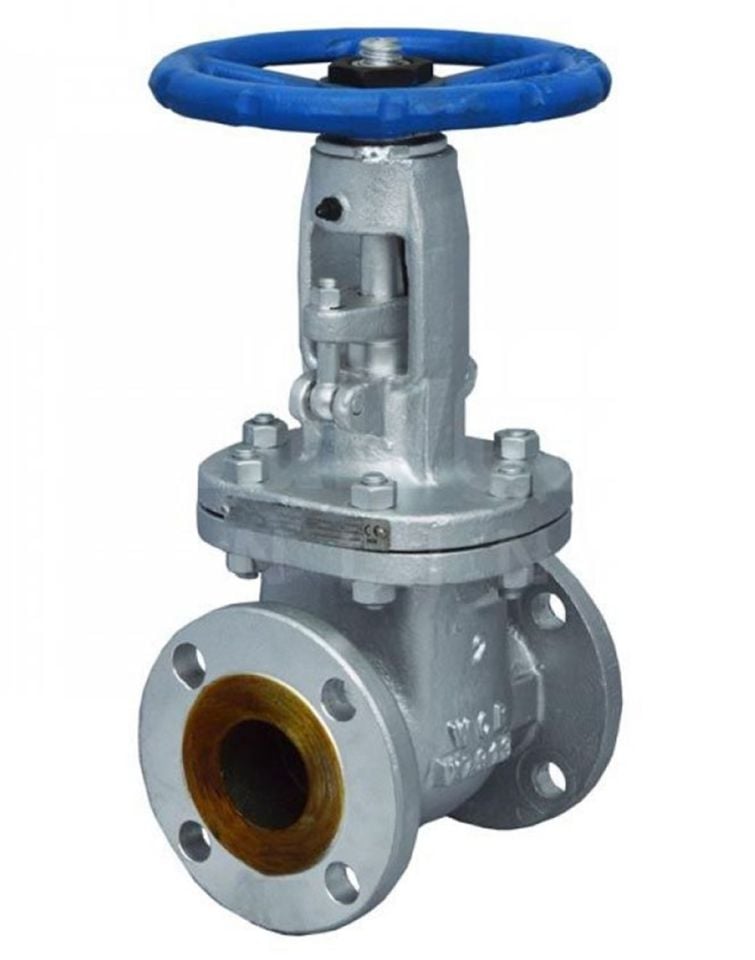

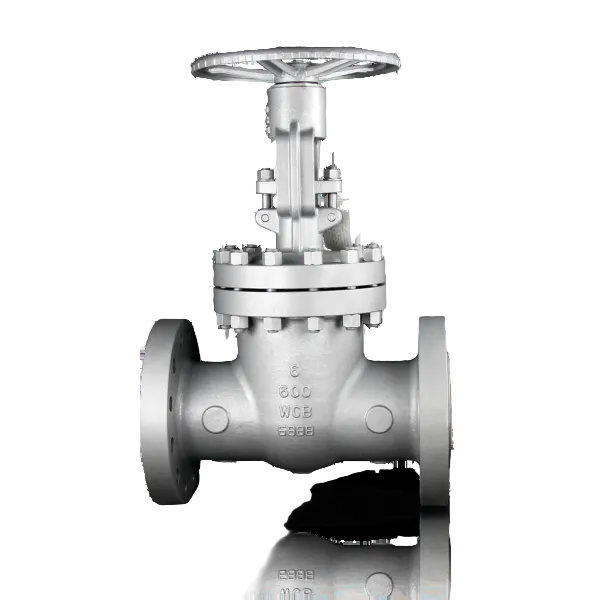

API 600 Cast Steel Gate Valve – CGAV-10
- Regular price
- $790.00
- Sale price
- $790.00
- Regular price
Tax included.
1000 in Stock
Shipping and Delivery Process
Return Process
Product Details
The CGAV-10 Series API 600 Gate Valve is a cast steel gate valve designed for reliable full-bore shut-off in high-pressure and high-temperature industrial pipeline systems.
- Body Material: ASTM A216 WCB cast steel for high strength and durability
- Full Bore Design: Minimal pressure drop when fully open, ideal for isolation service
- Connection Options: Flanged (ANSI B16.5) and butt weld (ANSI B16.25)
- Pressure Classes: Class 150, 300, and 600
- Standards: Designed per API 600, tested per API 598
- Operation: Multi-turn handwheel — designed for isolation, not throttling
Widely used in oil & gas pipelines, power plants, petrochemical plants, and industrial systems requiring reliable shut-off.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve type | Gate valve |
| Design standard | API 600 |
| Test standard | API 598 |
| Body material | ASTM A216 WCB |
| Connection type | Flanged / Butt Weld (BW) |
| Pressure class | Class 150 / 300 / 600 |
| Flow type | Full bore |
| Operation | Multi-turn |
