API 602 Forged Steel Gate Valve – FGAV

$135.00
$135.00
Tax included.
Size (DN Inch)
Size (DN Inch)
DN15 (1/2")
Pressure Class
Pressure Class
Class 800
Body Material
Body Material
A105
1000 in Stock

Shipping and Delivery Process

Return Process

Product Details

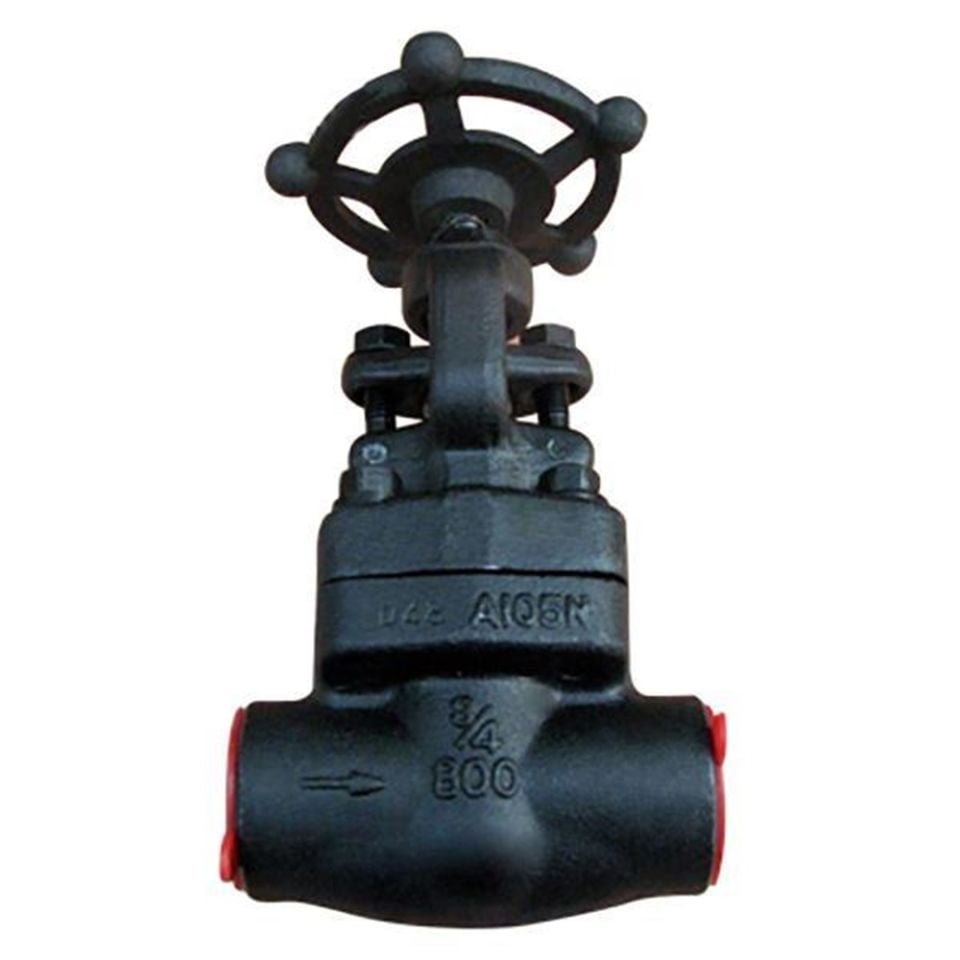

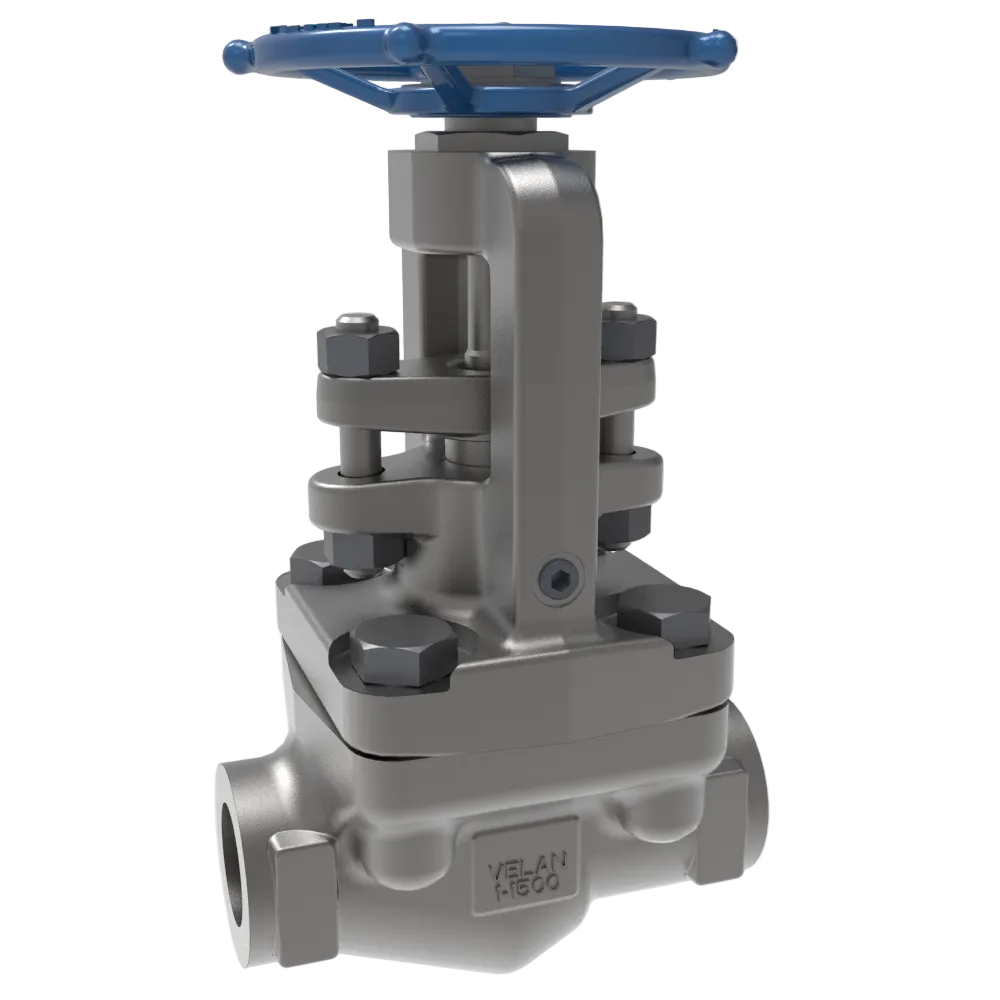

The FGAV Series API 602 Gate Valve is a forged steel gate valve designed for high-pressure and high-temperature isolation in small diameter industrial piping systems.

  • Forged Steel Body: High strength construction for demanding operating conditions (A105 or F22 material options)
  • Connection: Socket weld (SW) ends for secure, leak-free installation
  • Operation: Multi-turn mechanism for reliable shut-off and isolation
  • Pressure Class: Available in Class 800 and Class 1500
  • Standards: Designed per API 602 / ASME B16.34, tested per API 598

Widely used in steam systems, petrochemical plants, oil & gas pipelines, and high-pressure industrial isolation applications.

Technical Specifications

Parameter Specification
Valve type Gate valve
Design standard API 602 / ASME B16.34
Test standard API 598
Connection type Socket weld (SW)
Pressure class Class 800 / Class 1500
Body material A105 / F22
Operation Multi-turn
