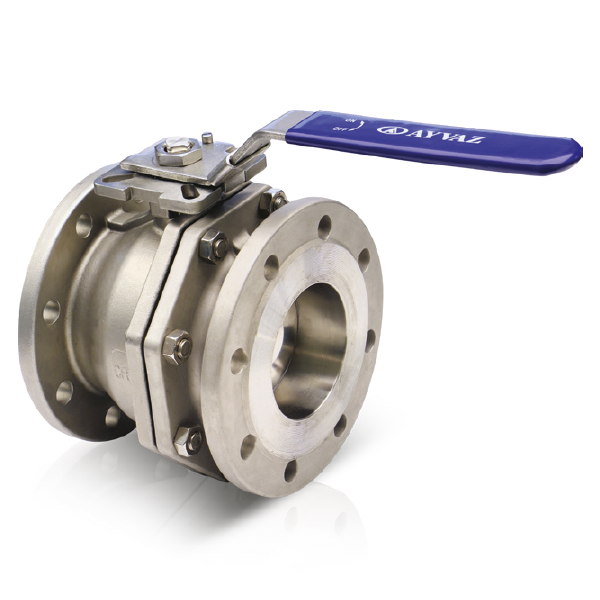

API 6D Flanged Ball Valve (2-Piece) – CBAV

API 6D Flanged Ball Valve (CBAV Series) is designed for reliable on/off flow control in industrial pipeline systems requiring high performance, low pressure drop, and long service life.

The valve features a two-piece body construction with flanged RF connections according to ANSI B16.5 standards, ensuring secure installation and easy maintenance. The face-to-face dimensions comply with ANSI B16.10, and testing is performed in accordance with API 598 standards.

The valve operates with a 90-degree rotation, providing fast and efficient shut-off capability. Depending on size, the valve is available in floating ball design (DN50–DN200) and trunnion-mounted ball design (DN250–DN300).

The body is available in carbon steel (WCB) or stainless steel (CF8M), offering flexibility for different industrial environments and media compatibility.

Each product variant represents a specific size, pressure class, and body material configuration.

API 6D ball valves are widely used in oil & gas, chemical processing, water systems, HVAC installations, and general industrial applications.

Applications

• Oil & gas pipelines
• Industrial process lines
• Chemical systems
• Water and HVAC systems

Technical Specifications

Type: Ball Valve
Design Standard: API 6D
Connection: Flanged (ANSI B16.5 RF)
Face to Face: ANSI B16.10
Test Standard: API 598
Pressure Class: Class 150 / 300
Body Material: WCB / CF8M
Operation: Quarter Turn (90°)
