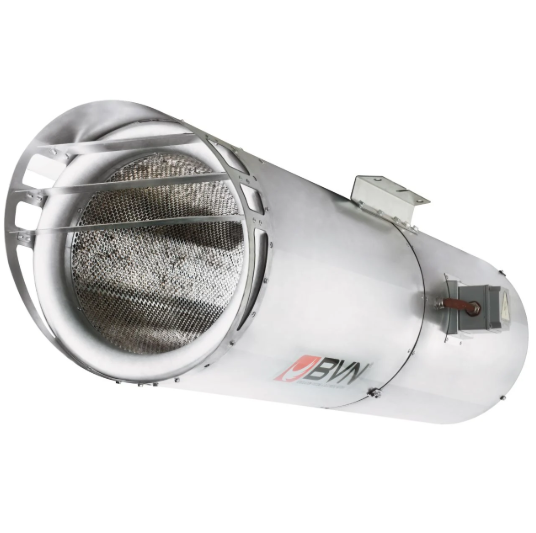

Axial Jet Fan Impulse Fan F300/2H

The Axial Jet Fan (Impulse Fan) is designed for efficient smoke control and ventilation in enclosed parking garages and tunnel applications. It operates without the need for extensive duct systems by creating directional airflow, pushing smoke and contaminated air towards exhaust points.

Certified for high-temperature operation (F300/2H), the fan is capable of functioning at 300°C for up to 2 hours during fire conditions, ensuring reliable smoke extraction and safe evacuation.

With its compact structure and aerodynamic impeller design, the jet fan delivers high thrust performance while maintaining energy efficiency. It is widely used in modern ventilation systems where space-saving and effective airflow management are critical.

APPLICATIONS

• Underground parking garages
• Tunnel ventilation systems
• Large enclosed spaces
• Industrial ventilation
• Smoke control systems

TECHNICAL SPECIFICATIONS

• Fan Type: Axial Jet (Impulse)
• Certification: F300/2H
• Application: Smoke control / Ventilation
• Airflow Range: 2,250 – 4,600 m³/h
• Motor Power: 24 – 25 kW (model dependent)
• Operation Temperature: 300°C / 2 hours
• Body Material: Steel
• Impeller: Aluminum
• Installation: Ceiling mounted
• Operation: Continuous & emergency
