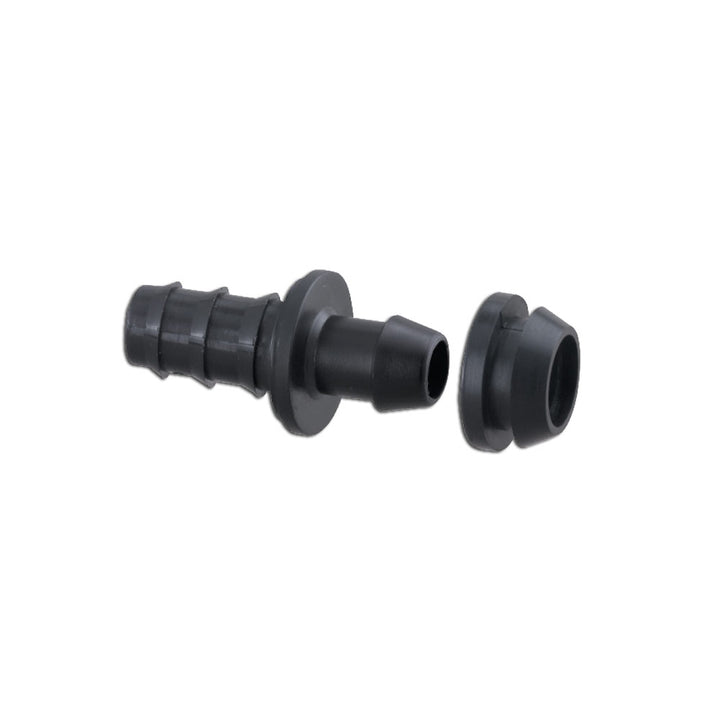

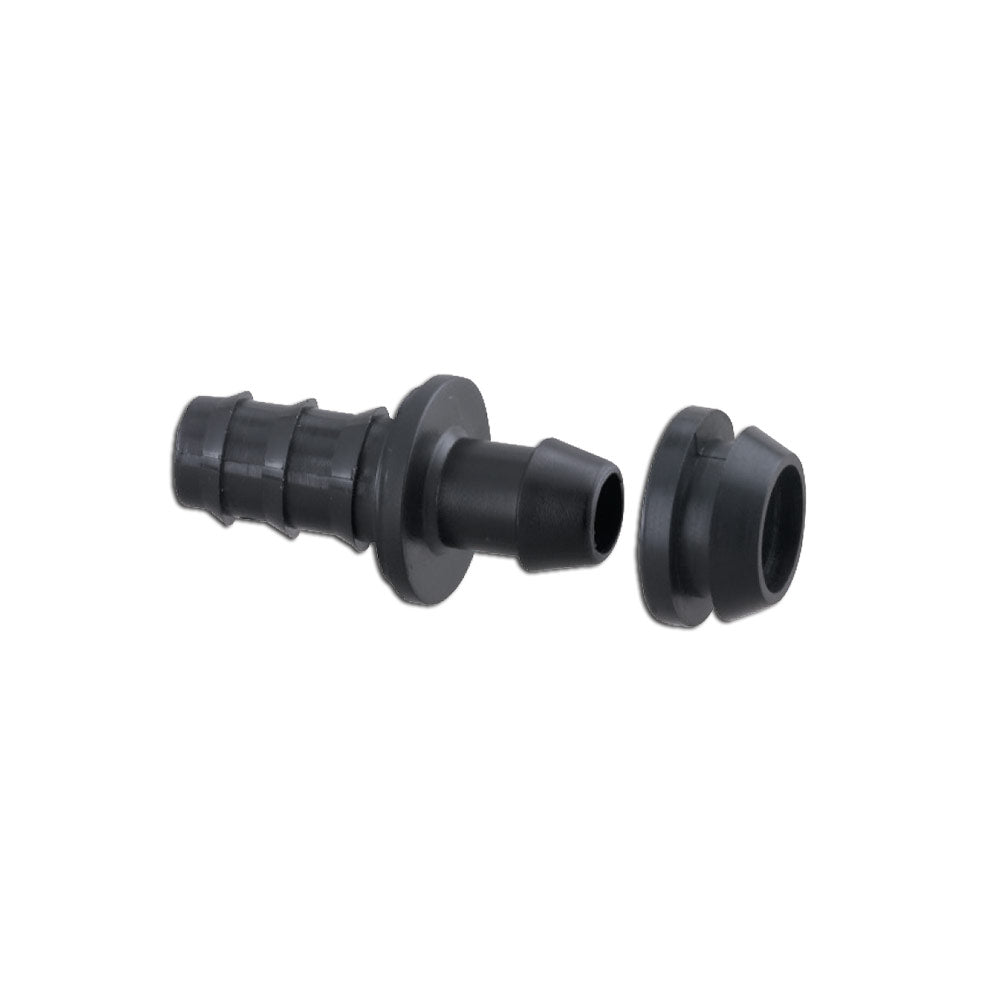

Barbed Grommet Nipple

Barbed Grommet Nipple is designed for creating quick and secure outlet connections from main polyethylene (PE) pipes using a rubber grommet sealing system. This fitting allows efficient take-off connections without threading, making installation fast and practical in field conditions.

The system works by drilling a hole into the main pipe, inserting a rubber grommet, and pushing the nipple into place. The grommet provides a tight, leak-proof seal, while the barbed outlet ensures strong mechanical grip for hose connections.

Manufactured from UV-stabilized polypropylene (PP) and high-quality rubber, this connector offers excellent resistance to pressure, environmental conditions, and long-term outdoor use.

Technical Specifications

• Product Type: Barbed Grommet Nipple
• Material: PP (Body) + Rubber Grommet
• Connection Type: Grommet x Barbed
• Installation Type: Drill-in (hole punch required)
• Pipe Compatibility: PE irrigation pipes
• Sizes:
  • 16 x 16 mm
  • 20 x 16 mm (Reducer)
• Pressure Range: 4 – 6 bar
• Temperature Range: -10°C to +60°C
• Color: Black
• Each package contain 100 nos of Barbed Grommet Nipple

Size Table

How to Use

1. Drill a hole on the main PE pipe
2. Insert the rubber grommet into the hole
3. Push the nipple into the grommet
4. Connect the hose to the barbed side
5. Test for leakage

Application Areas

Barbed Grommet Nipple is used in drip irrigation systems, agricultural irrigation networks, greenhouse installations, and garden watering systems. It is ideal for taking single outlet connections from main PE pipelines.
