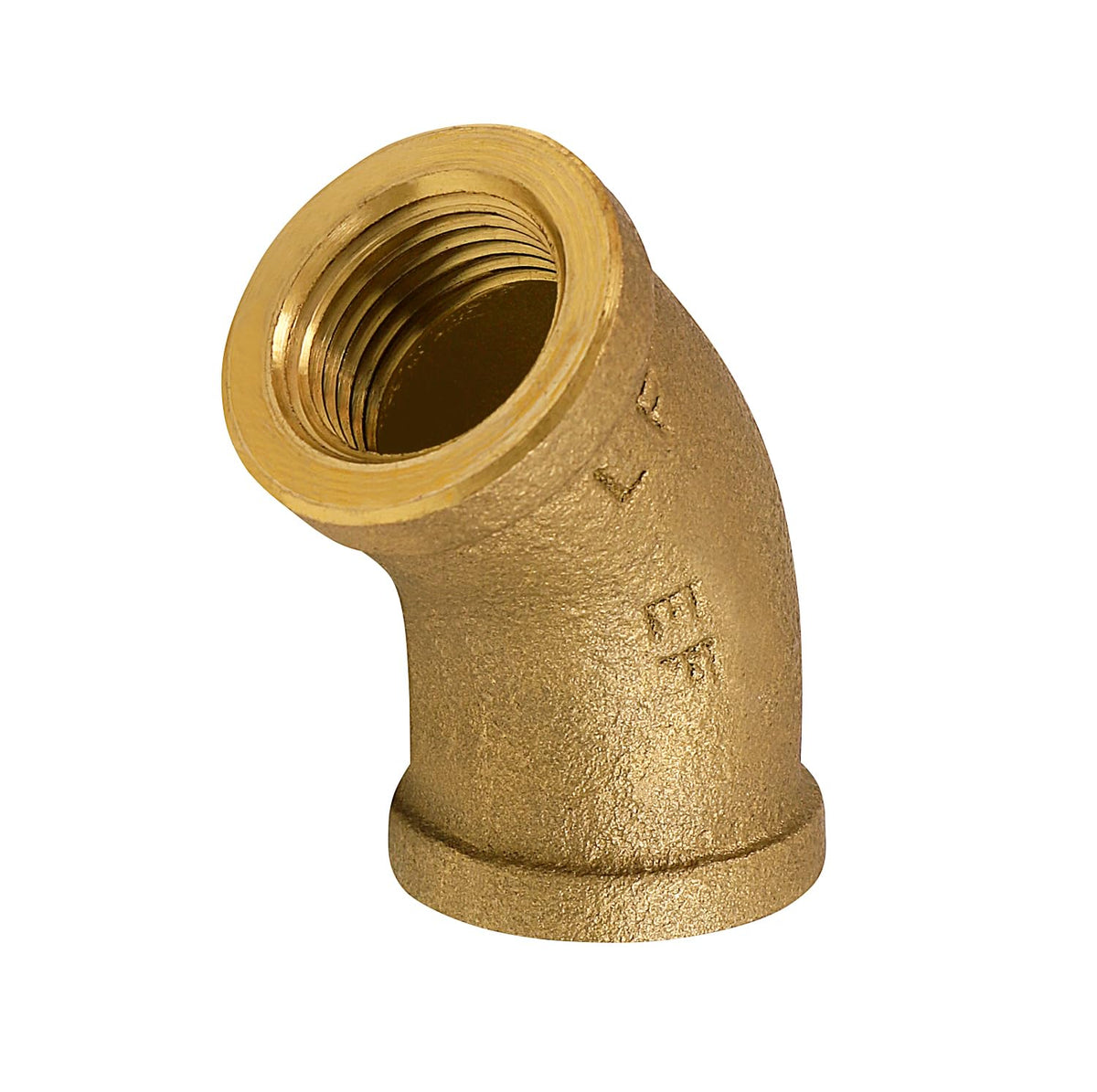

Brass Female Threaded Elbow 45°

Brass Female Elbow 45° is a precision-machined fitting developed for efficient routing of piping systems requiring a moderate directional change. Produced from CW617N brass, it ensures strong resistance against corrosion, pressure loads, and long-term operational wear.

The dual female BSP thread configuration enables direct integration with male-threaded pipes, valves, and equipment, eliminating the need for additional connectors and simplifying system assembly. The 45-degree angle supports a more balanced flow path, reducing localized stress points within the pipeline and contributing to stable system performance.

Its compact form factor allows installation in confined layouts, while the accurately cut threads provide secure engagement and dependable sealing under pressure. This fitting is a reliable choice for systems where durability, installation efficiency, and controlled flow direction are required.

Technical Specifications

• Material: CW617N (MS58) Brass

• Connection Type: Female x Female Thread (BSPP / BSPT compatible)

• Angle: 45°

• Pressure Rating: PN25

• Standard: ISO 228-1

• Surface Options: Natural Brass / Nickel Plated

• Sealing Method: PTFE tape or thread sealant
• Temperature Range: -20°C to +150°C

Size Range

1/4” – 3/8” – 1/2” – 3/4” – 1” – 1 1/4” – 1 1/2” – 2”

Application Areas

Brass Female Elbow 45° is used in plumbing systems, gas lines, heating installations, compressed air systems, and industrial piping networks. It is suitable for applications requiring controlled directional change within compact system designs.
