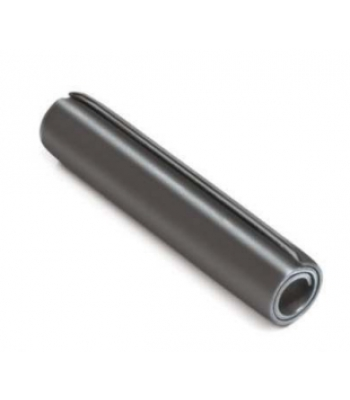

Coiled Spring Pin ISO 8750

$30.50
$30.50
Tax included.
Metric Diameter
Metric Diameter
1

Shipping and Delivery Process

Return Process

Product Details

Coiled Spring Pins are multi-layer rolled fasteners where the pin material is wound into multiple coils, providing superior flexibility, shock absorption, and fatigue resistance compared to single-layer slotted spring pins. The coiled construction distributes stress evenly across the pin wall, allowing repeated installation and removal without loss of retention force.

Manufactured to ISO 8750 / DIN 7344 standard from high-carbon spring steel or stainless steel, these pins are the preferred choice for high-vibration, dynamic load, and precision alignment applications in automotive, aerospace, electronics, and heavy machinery industries.

The chamfered ends facilitate easy insertion, while the constant radial spring force ensures a secure, self-retaining fit in the host material without additional locking hardware.

Technical Details

  • Standard: ISO 8750 / DIN 7344
  • Type: Coiled (multi-layer) spring pin
  • Material: Carbon spring steel / Stainless Steel A1 (AISI 302)
  • Finish: Plain / Phosphate / Stainless
  • Duty: Light (ISO 8751), Standard (ISO 8750), Heavy (ISO 8752)
  • Application: High-vibration assemblies, precision alignment, dynamic load connections
  • Each Pack contains 10 pieces of Coiled Spring Pin

Product Sizes of Coiled Spring Pin ISO 8750

Diameter Length Range (mm)
D1 4-20
D1.5 4-20
D2 4-30
D2.5 4-30
D3 4-50
D3.5 4-40
D4 4-50
D4.5 5-50
D5 5-50
D6 10-50
D8 10-50
D10 10-50
D12 10-50
D13 10-50
D14 10-50
D16 10-50
D18 10-50
D20 10-50
D21 14-50
D25 14-50
D28 14-50
D30 14-50
D32 20-50
D35 20-50
D38 20-50
D40 20-50
D45 20-50
D50 20-50
