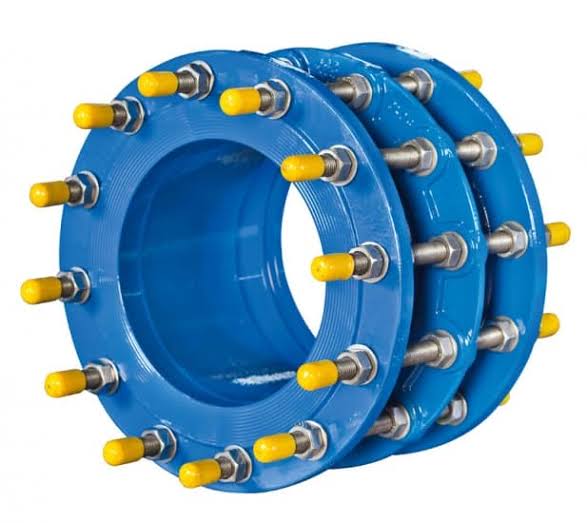

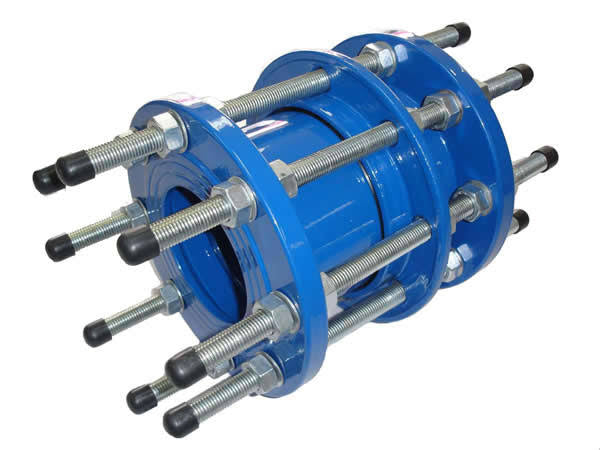

Dismantling Joint

Dismantling Joint is a critical pipeline installation component designed to facilitate easy assembly, disassembly, and maintenance of valves, pumps, and pipeline equipment. This flanged dismantling joint provides axial adjustment capability, allowing precise alignment and simplified installation in pressurized piping systems.

Dismantling pieces manufactured from high-strength ductile iron dismantling joint body (EN-GJS-500 / GGG50), the unit ensures durability and resistance against mechanical stress. The integrated tie rods and adjustable flange system enable controlled length compensation, making it an essential pipeline dismantling compensator for infrastructure and industrial applications.

The EPDM sealing gasket ensures leak-proof performance under varying pressure conditions, while galvanized or stainless steel bolts and nuts provide long-term corrosion resistance. This industrial dismantling joint is widely used in water supply systems, wastewater treatment plants, HVAC systems, and pumping stations.

Designed in accordance with international standards such as EN 1092-1 flange standards, EN-GJS material standards, and tested under hydrostatic pressure conditions, this flanged adjustment joint guarantees reliable and safe operation.

Technical Specifications:
Connection Type: Flanged Dismantling Joint
Pressure Classes: PN10 / PN16 / PN25
Nominal Diameter Range: DN100 – DN1200
Body Material: EN-GJS-500 (GGG50) / EN-GJS-400 (GGG40)
Tie Rods / Bolting: Galvanized Steel or Stainless Steel (AISI 304 / 316 optional)
Sealing Material: EPDM Gasket
Coating: Epoxy Coated (Electrostatic Powder Coating optional)
Adjustment Range: Axial length compensation for installation tolerance
Standards: EN 1092-1, ISO, EN Material Standards
Testing: Hydrostatic pressure tested

Application Areas

Dismantling Joint is widely used in water supply pipelines, wastewater systems, pumping stations, and industrial piping networks where easy installation and maintenance are required. This flanged dismantling joint is ideal for valve installation, pump connections, and pipeline alignment systems, allowing fast assembly and disassembly without damaging adjacent equipment.

It is commonly applied in municipal infrastructure projects, HVAC systems, fire protection lines, irrigation systems, and energy plants, where pipeline dismantling joint solutions improve operational efficiency and reduce maintenance downtime.

Size & Dimention Table of Dismantling Joint
