Drainage Board with Geotextile and Dimple Sheet

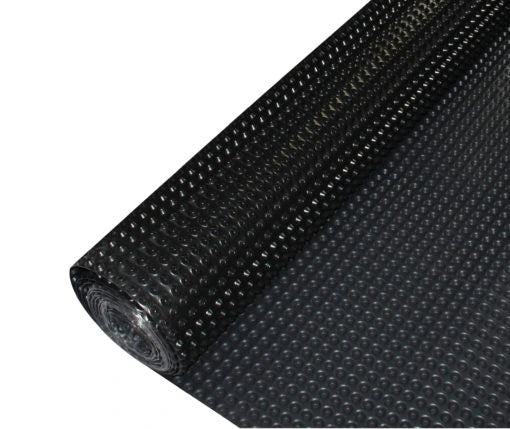

Drainage Board with geotextile is a high performance HDPE dimpled sheet designed to provide effective drainage and protection for underground structures. The dimpled core creates a continuous air gap that allows water to flow freely, reducing hydrostatic pressure on foundation walls while protecting waterproofing membranes.

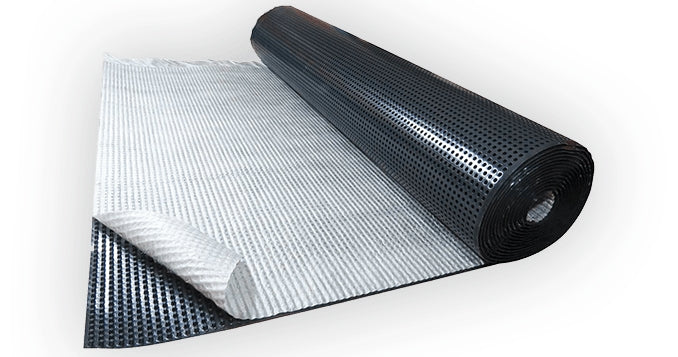

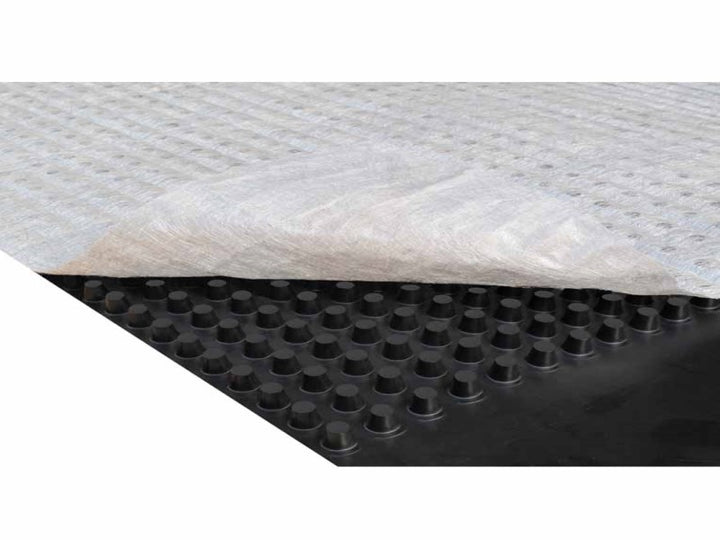

The integrated nonwoven geotextile layer acts as a filtration system, preventing soil particles from clogging the drainage channels. This combination ensures long term drainage efficiency and structural protection in demanding construction environments.

Available in 8 mm and 10 mm thickness options, this drainage board system is widely used in foundation walls, basements, retaining walls, tunnels, and landscaping projects. Compared to traditional gravel systems, it offers faster installation, reduced cost, and consistent performance.

Technical Specifications

• Material: HDPE dimple sheet + nonwoven geotextile
• Thickness: 8 mm / 10 mm
• Roll Width: 2 m
• Roll Length: 20 m
• Roll Area: 40 m²
• Geotextile Weight: 110 g (8 mm) / 136 g (10 mm)
• Total Weight: ~610 g/m² (8 mm) / ~750 g/m² (10 mm)
• Color: Black (core) + white geotextile

Application Areas

Drainage board used for foundation wall drainage systems
HDPE drainage sheet applied for basement waterproofing applications
Dimpled drainage board used for retaining wall protection systems
Drainage board with geotextile applied for tunnel waterproofing
HDPE drainage board used for underground structure protection
Drainage sheet applied for landscaping and green roof drainage
Drainage board used for hydrostatic pressure reduction systems
