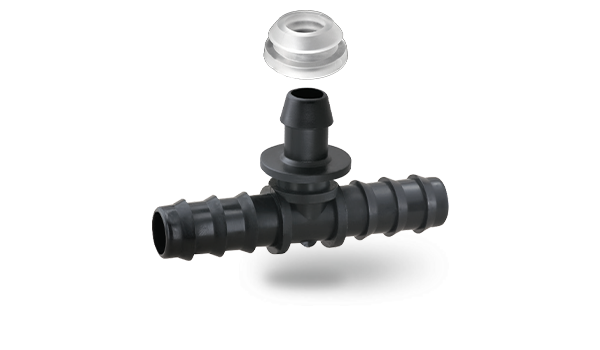

Drill-In Barbed Grommet Tee Connector 16x16x16 mm

$38.90
$38.90
Tax included.
Size
Size
16 x 16 x 16mm

Shipping and Delivery Process

Return Process

Product Details

Drill-In Barbed Grommet Tee Connector 16x16x16 mm is designed to create secure branch connections directly from main PE pipelines using a rubber grommet sealing system. This fitting enables fast and reliable outlet creation without threading or complex installation.

The installation is performed by drilling a hole in the main pipe, inserting the rubber grommet, and pushing the connector into place. The grommet provides a tight, leak-proof seal, while the barbed ends ensure strong grip for hose connections.

Manufactured from UV-stabilized polypropylene (PP) and high-quality rubber, this connector offers excellent durability, pressure resistance, and long-term outdoor performance.

Technical Specifications

  • Product Type: Drill-In Barbed Grommet Tee Connector
  • Size: 16 x 16 x 16 mm
  • Material: PP (Body) + Rubber Grommet
  • Connection Type: Barbed x Grommet x Barbed
  • Installation Type: Drill-in
  • Pressure Range: 4 – 6 bar
  • Temperature Range: -10°C to +60°C
  • Color: Black
  • Each package contain 100 number of Drill-In Barbed Grommet Tee

Packing Information

Size Packing Quantity Box Quantity
16 x 16 x 16 mm 100 pcs 1400 pcs

How to Use

  1. Drill a hole on the main PE pipe
  2. Insert the rubber grommet into the hole
  3. Push the connector firmly into place
  4. Connect hoses to both sides
  5. Test the system for leaks

Application Areas

Used in drip irrigation systems, agricultural irrigation, greenhouse installations, and landscaping. Ideal for taking lateral outlets from main PE pipes.
