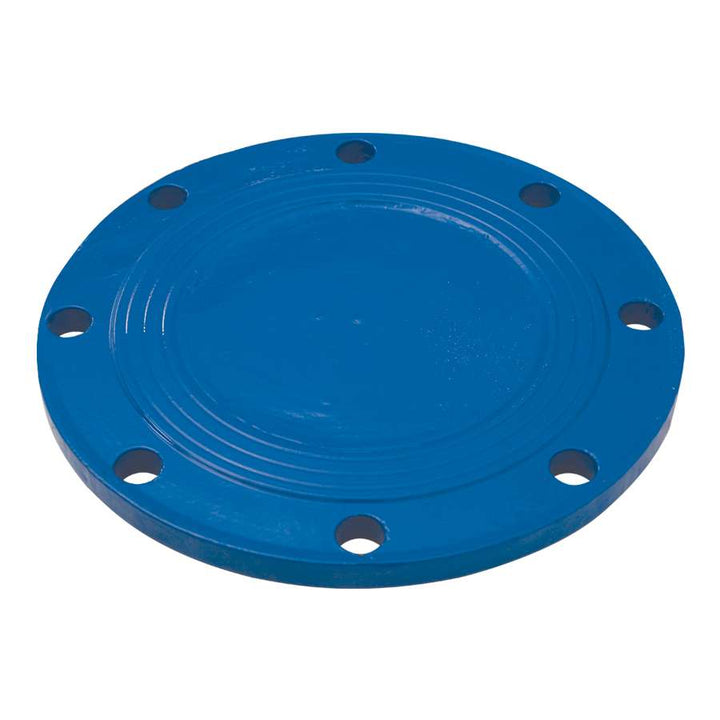

Ductile Iron Blind Flange

Ductile Iron Blind Flange is a full face solid flange designed to securely seal the end of pipeline systems. Manufactured from high strength ductile iron GG40 it provides excellent mechanical resistance corrosion durability and long service life in pressurized systems.

This blind flange is widely used in water supply wastewater irrigation and industrial pipeline systems where future expansion maintenance or pressure testing points are required. Its monoblock structure ensures leak free sealing and reliable performance under PN16 pressure conditions.

Compatible with EN 1092 2 standards it allows easy installation with standard gasket and bolting systems.

Technical Specifications

Material Ductile Iron GGG40 EN GJS 400 15
Pressure Rating PN16
Standard EN 1092 2
Type Blind Flange Full Face
Coating Epoxy Powder Coated minimum 250 micron
Application Water wastewater industrial pipelines
Connection Bolted flange
Sealing Full face gasket compatible

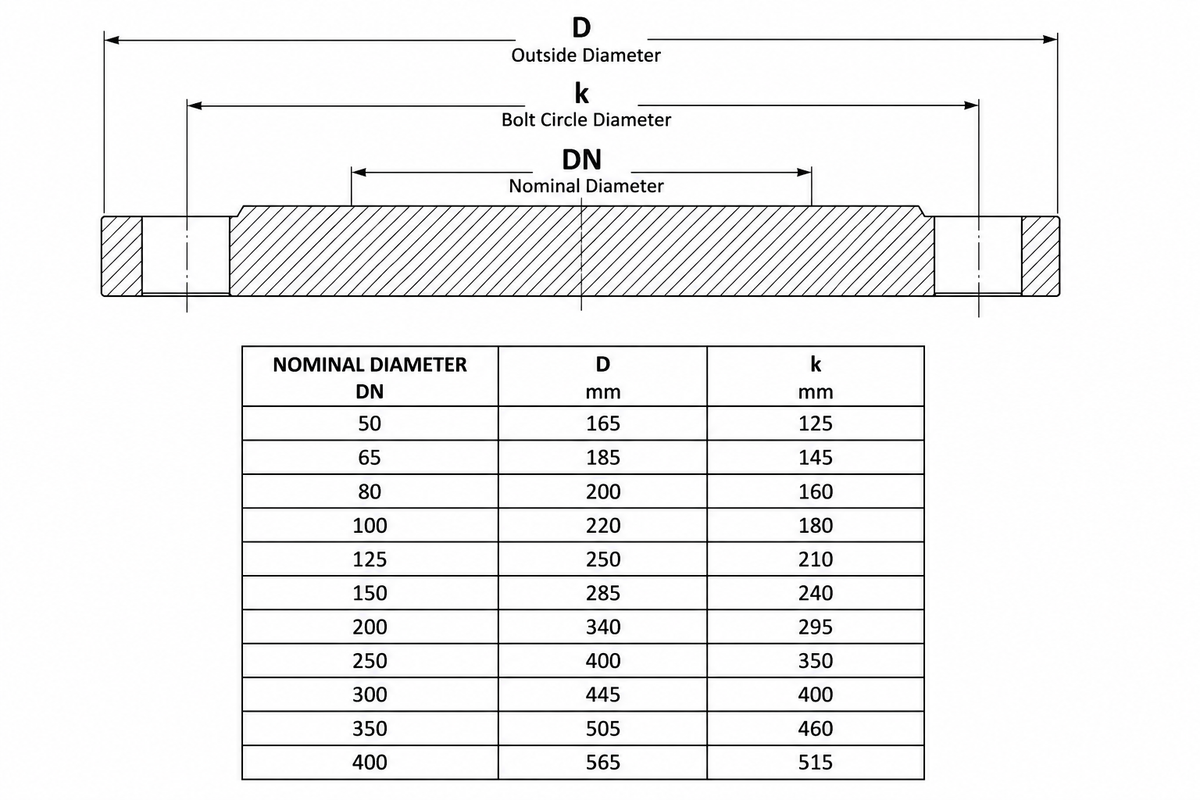

Size Chart for Ductile Iron Blind Flange

Application Areas of DI Blind Flange

DI Blind Flange used for water supply systems
DI Full face solid flange usable for wastewater infrastructure
Blind Flange ductile iron used for irrigation lines, industrial pipelines, pump stations and valve chambers
DI Blind Flange for pressure testing and system termination
