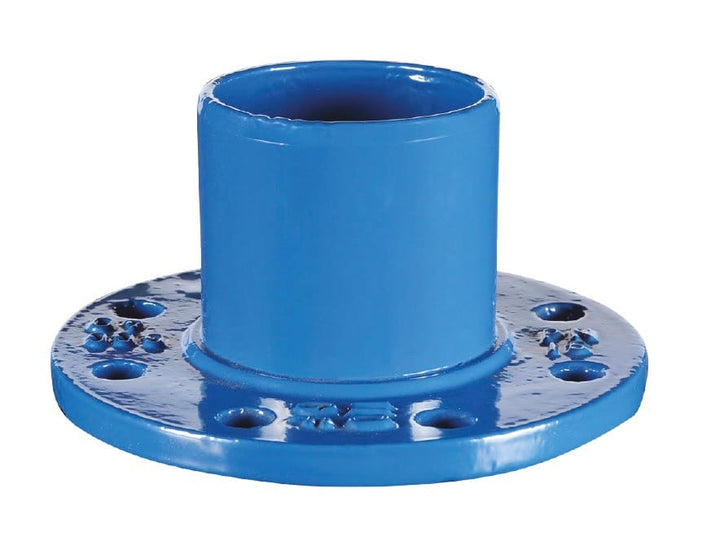

Ductile Iron Flange Adapter

Ductile Iron Flange Adapter is a heavy duty flange adapter engineered to create secure connections between plain-end pipes and flanged systems in demanding pipeline applications. This pipe flange connector is widely used in water distribution, infrastructure, and industrial piping networks where durability, sealing performance, and installation flexibility are critical.

Manufactured from high strength ductile iron, this flange adaptor fitting offers excellent resistance to internal pressure, mechanical stress, and longterm wear. The integrated EPDM sealing gasket ensures a reliable, leak-tight joint, making this EPDM flange adapter suitable for potable water systems, wastewater lines, and general utility pipelines.

Designed for ease of installation, this pipeline flange adapter accommodates minor pipe tolerances and simplifies alignment during assembly. The use of corrosion resistant coated bolts and nuts enhances operational life, especially in aggressive environments. Whether used for new installations or maintenance work, this industrial flange coupling solution delivers consistent performance and long-term reliability.

Compatible with international flange standards, this ductile iron pipe fitting can be integrated into a wide range of systems including valves, pumps, and pipeline extensions.

Technical Specifications

Size Range: DN50 – DN400
Pressure Class: PN16
Connection Type: Plain pipe to flange connection

Material Details:

• Body: Ductile Iron
• Flange: Ductile Iron
• Gasket: EPDM
• Bolts & Nuts: High-strength coated steel

Standards:

• ISO 7005-2
• EN 1092-2
• ANSI B16 compatible drilling

Dimentions Chart of DI Flange Adapter
