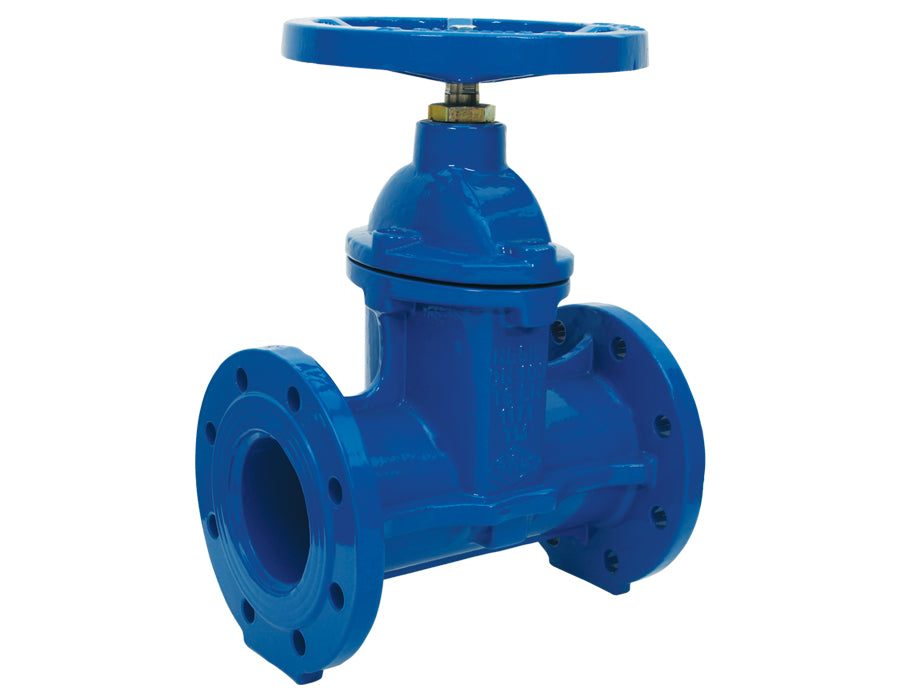

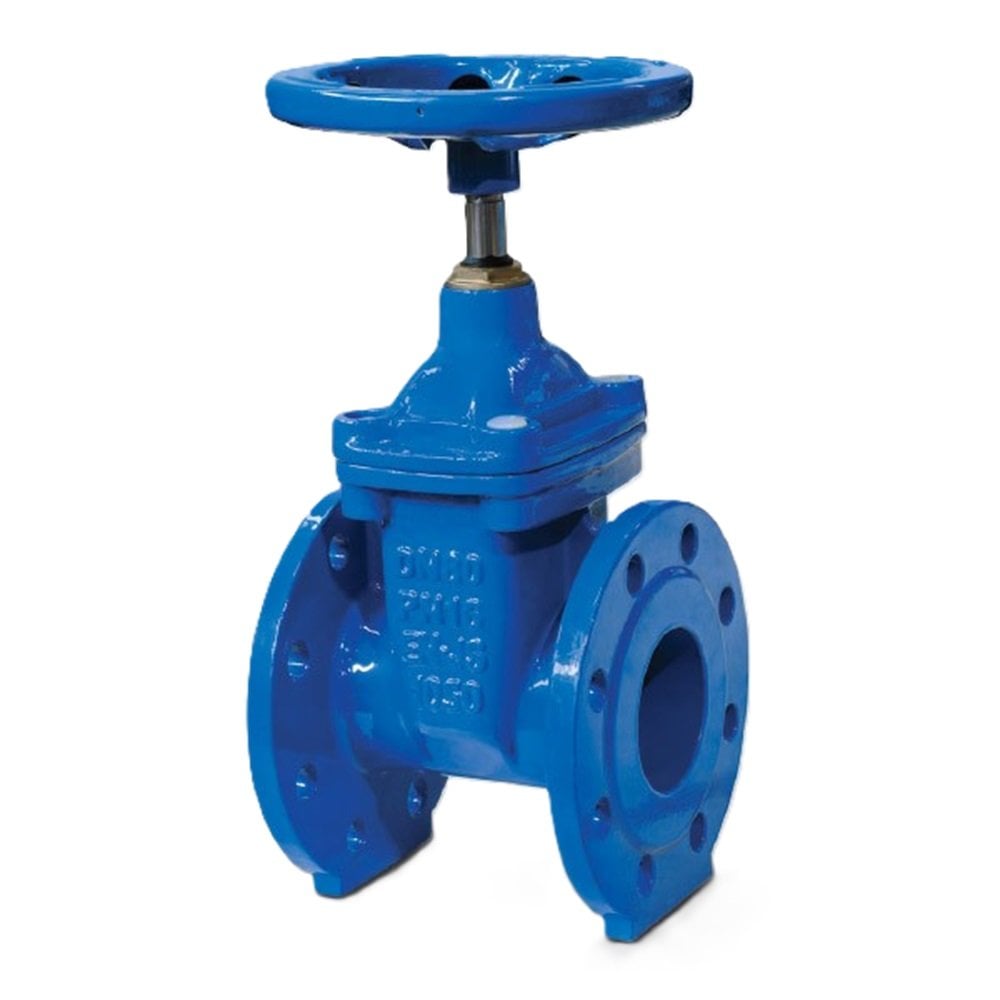

Gate Valve Resilient Seated

Gate Valve is engineered for high performance shut-off applications across water, infrastructure and industrial pipeline systems. Designed with a robust ductile iron body and fully epoxy coated surfaces, the valve provides superior corrosion resistance and long term operational reliability and produced in EN / DIN standards

The EPDM encapsulated wedge ensures full contact sealing and delivers zero leakage performance even under high pressure conditions. The optimized internal flow geometry minimizes pressure loss and improves system efficiency.

A stainless steel stem with rolled threads ensures high strength and smooth operation in gate valve. Low friction plastic guide rails reduce operating torque and provide stable movement during opening and closing.

Gate Valve Resilient Seated suitable for underground and above ground installations, the resilient seated gate valve is compatible with a wide pressure range from PN10 to PN40 and is ideal for demanding infrastructure and industrial applications.

Technical Spesifications

Key Features

• Wide pressure range PN10 PN16 PN25 PN40
• EPDM encapsulated wedge for zero leakage
• Full epoxy coating for corrosion resistance
• Low torque operation with guide system
• Stainless steel stem for high durability
• Maintenance free sealing system
• Optimized flow with minimal pressure loss
• Suitable for potable water systems

Application Areas

Gate valves used in water transmission and distribution systems, infrastructure pipelines, industrial systems, pump stations, fire protection systems, seawater installations and power plant cooling systems. Suitable for potable water and high pressure applications.

Versions

• Handwheel operated
• Bare shaft for underground use
• Gearbox operated recommended for DN200 and above
• Electric actuator compatible
• ISO top flange actuator ready
