HDPE Compression Elbow Push Fit Type
- Regular price
- $22.90
- Sale price
- $22.90
- Regular price
Shipping and Delivery Process
Return Process
Product Details

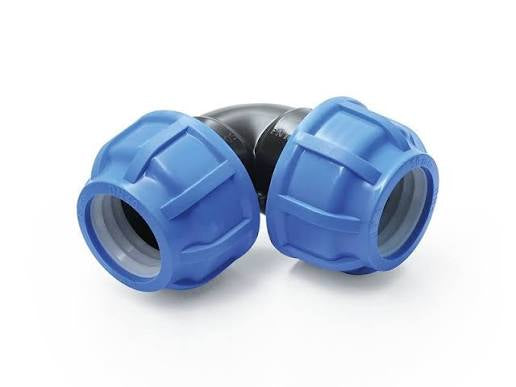

HDPE Compression Elbow Coupling is designed to create secure angled connections in HDPE and PE pipeline systems without welding or special installation equipment. Its mechanical compression structure provides strong sealing performance, easy assembly and reliable pipe alignment for water supply, irrigation, landscaping, agricultural networks and low pressure infrastructure lines.
The elbow coupling allows the pipeline direction to change smoothly while maintaining a leak resistant connection. It is suitable for PE100 and PE80 pipes and is commonly used where fast installation, maintenance flexibility and durable outdoor performance are required.
Technical Spesification of Mechanical Elbow
|
Specification |
Details |
|
Product Type |
Compression Elbow Coupling |
|
Material |
PP Body, PE/PP Nut, POM Grip Ring, NBR or EPDM Sealing Ring |
|
Compatible Pipe |
HDPE, PE100, PE80 Pipes |
|
Angle |
90 Degree |
|
Diameter Range |
DN 20 mm to DN 150 mm |
|
Pressure Rating |
PN10 |
|
Connection Type |
Mechanical Compression |
|
Installation Method |
Hand tightening or wrench assisted tightening |
|
Application |
Water supply, irrigation, landscaping, agriculture, utility lines |
|
Color |
Black body with blue or black nut options |
|
UV Resistance |
Suitable for outdoor use |
|
Sealing Type |
Compression seal with rubber gasket |
Key Features
|
Feature |
Benefit |
|
Quick Installation |
No welding, threading or adhesive required |
|
Strong Sealing |
Compression gasket provides leak resistant performance |
|
Durable Body |
PP structure offers resistance to corrosion and outdoor conditions |
|
Easy Maintenance |
Can be removed and reinstalled when required |
|
Wide Compatibility |
Suitable for HDPE and PE pressure pipes |
|
Smooth Direction Change |
Allows clean 90 degree pipe routing |
|
Cost Effective |
Reduces installation time and labor cost |
Application Areas
HDPE Compression Elbow Coupling is used for potable water distribution lines, agricultural irrigation systems, garden and landscape water networks, PE pipeline repair works, pump connection lines, municipal service connections and low pressure industrial water transfer systems.
How to Use
Cut the HDPE pipe end straight and clean the surface. Loosen the coupling nut, insert the pipe into the fitting until it reaches the internal stop point, then tighten the nut firmly to activate the compression seal. For larger diameters, wrench assisted tightening is recommended.
