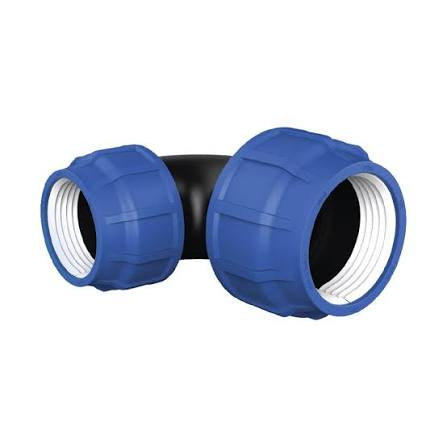

HDPE Compression Reducing Elbow Push Fit Type

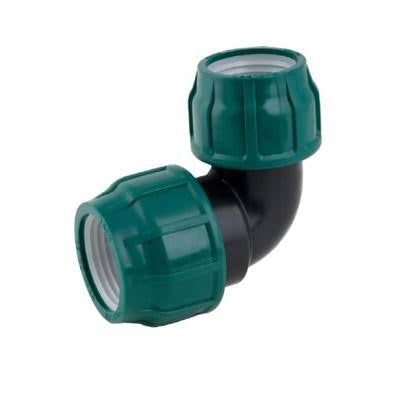

HDPE Mechanical Reducing Elbow is a dual-function fitting designed to provide both directional change and diameter reduction within HDPE pipeline systems. Engineered for efficiency in field installations, this fitting enables a 90-degree flow turn while simultaneously transitioning between different pipe sizes without the need for additional reducers.

Manufactured from high quality polypropylene body components combined with PE compatible sealing elements, the fitting ensures excellent resistance to corrosion, chemicals, and environmental conditions. The mechanical compression system allows fast and secure installation without welding, making it ideal for on-site applications where speed and flexibility are critical.

The integrated sealing system with EPDM or NBR gasket ensures leak proof performance under pressure, while the boltless compression design simplifies assembly and disassembly. This makes the product highly suitable for maintenance operations, system expansions, and temporary connections.

Technical Specifications

• Body Material: PP / Reinforced Polymer (HDPE compatible)
• Type: Mechanical Compression
• Configuration: Reducing Elbow 90°
• Pressure Rating:  PN10-PN16
• Sealing: EPDM / NBR gasket
• Standard Compatibility: ISO 4427 / EN 12201 systems
• Installation: No welding required
• Angle: 90°

Size Table of Mechanical Reducing Elbow

Application Areas

HDPE Mechanical Reducing Elbow is used in potable water systems, irrigation networks, agricultural pipelines, and industrial fluid transfer lines. It is ideal for routing pipelines in limited spaces while adapting to different pipe diameters.
