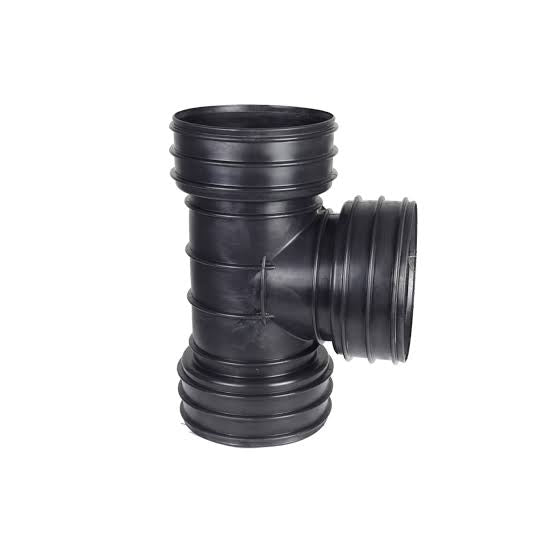

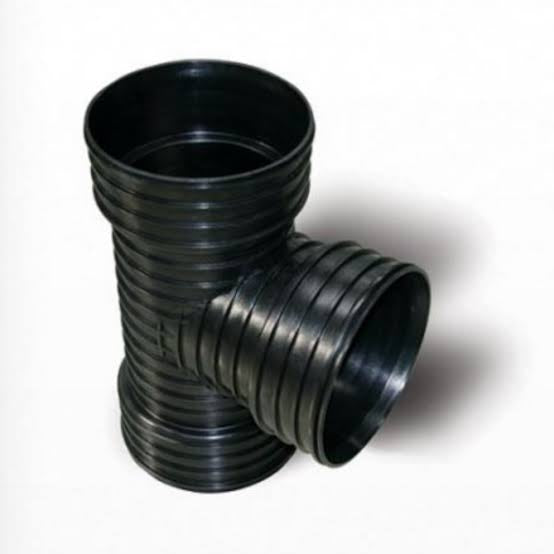

HDPE Corrugated Pipe Tee

HDPE Corrugated Pipe Equal Tee is designed to provide balanced and efficient flow distribution in drainage and sewer systems where all connections share the same diameter. The double wall structure delivers high external load resistance while maintaining smooth internal flow characteristics. It ensures stable hydraulic performance and long term reliability in underground installations exposed to varying soil and environmental conditions.

Technical Specifications
Material : HDPE High Density Polyethylene
Structure : Double wall corrugated outer smooth inner
Type : Equal tee
Standard : EN 13476 ISO 21138
Connection : Socket with EPDM gasket
Branch angle : 90 degree
Temperature range:  -40 +60

Key Features
Balanced flow distribution
Uniform diameter connection
High structural strength
Flexible and crack resistant body
Corrosion and chemical resistance
Leak proof sealing compatibility
Long service life
Easy installation in confined areas

Application Areas
Stormwater drainage systems
Sewer and wastewater pipelines
Infrastructure and road drainage
Industrial fluid transfer lines
Agricultural drainage systems

Engineering Note
Equal tee provides symmetric flow behavior across all connected lines. For high flow applications, attention should be given to turbulence at the junction. In large diameter systems reinforced structure is recommended to maintain joint stability under load conditions.
