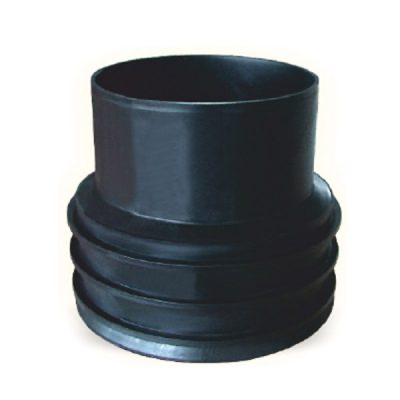

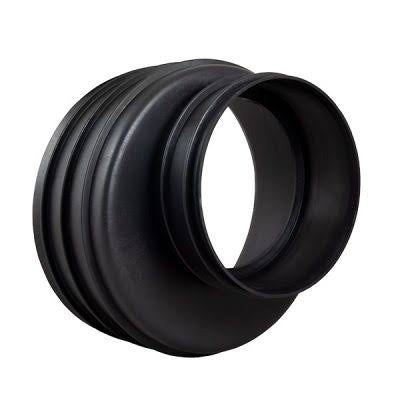

HDPE Corrugated Reducer

HDPE Corrugated Pipe Reduction is designed to connect pipes with different diameters in drainage and sewer systems while ensuring a controlled and efficient flow transition. The geometry of the reducer minimizes turbulence and pressure loss, supporting stable hydraulic performance. Its double wall construction combines high external load resistance with a smooth inner surface for uninterrupted flow. This makes it a reliable solution for long term underground applications exposed to variable soil and environmental conditions.

Technical Specifications

Material: HDPE High Density Polyethylene
Structure: Double wall corrugated outer smooth inner
Type: Concentric reduction and eccentric reduction
Standard: EN 13476 ISO 21138
Connection: Socket with EPDM gasket or coupler
Diameter range: DN100 to DN1200
Temperature range: - 40 + 60

Key Features of Corrugated Reducer

Smooth diameter transition
Reduced turbulence and pressure loss
High structural strength
Flexible and crack resistant body
Corrosion and chemical resistance
Leak proof sealing compatibility
Long service life

Application Areas

Stormwater drainage systems
Sewer and wastewater networks
Infrastructure pipeline systems
Industrial discharge lines
Agricultural drainage systems
