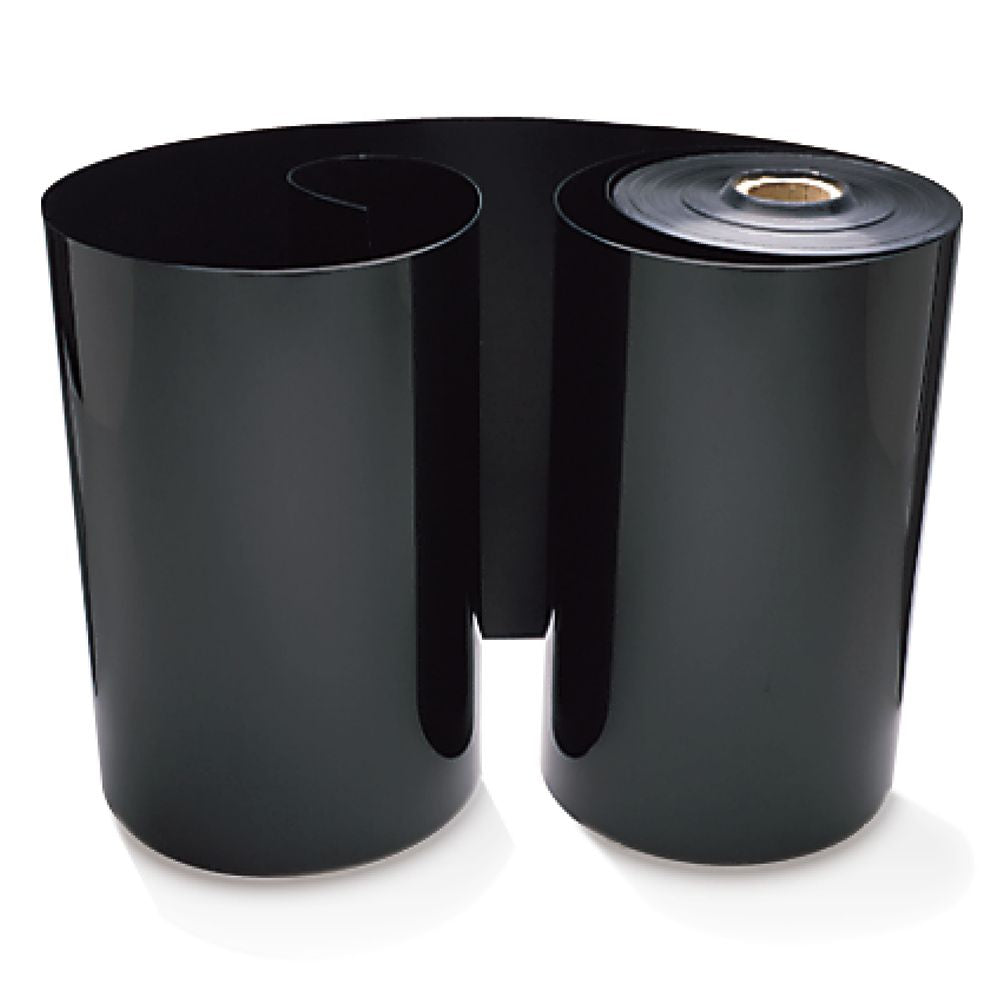

HDPE Geomembrane Liner UV Resistant

HDPE Geomembrane or named Hdpe Poly Liner is a high density polyethylene waterproofing membrane designed for demanding containment and environmental protection applications. Known for Poly Liners excellent chemical resistance, durability, and cost efficiency and HDPE geomembranes are widely used in large scale engineering projects.

Unlike flexible rubber liners, HDPE geomembrane offers superior resistance to chemicals, hydrocarbons, and aggressive environmental conditions. Its high tensile strength and low permeability make it an ideal solution for landfill liners, mining operations, wastewater treatment systems, and industrial containment.

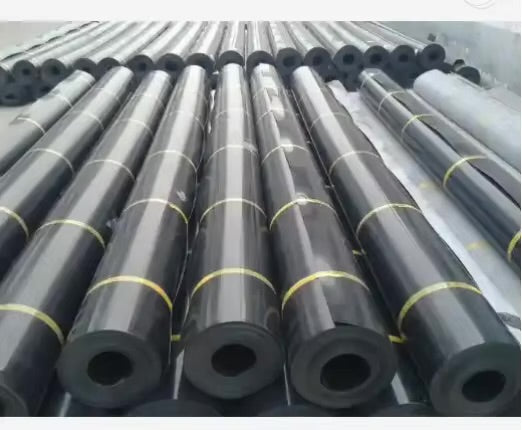

HDPE geomembranes are produced through extrusion processes ensuring consistent thickness and quality. The material can be welded on site using hot wedge or extrusion welding techniques, creating strong, leak-proof seams.

Technical Specifications

Material: High Density Polyethylene (HDPE)
Color: Black (standard)
Surface: Smooth / Textured (optional)

Thickness Options:
1.00 mm
1.50 mm
2.00 mm

3.00mm

Density: ≥ 0.94 g/cm³
Tensile Strength: ≥ 15 MPa
Elongation at Break: ≥ 600%
Water Permeability: Impermeable
UV Resistance: Excellent
Chemical Resistance: Excellent
Temperature Resistance: -40°C to +80°C
Installation: Hot wedge welding / extrusion welding
Service Life: 20–30+ years

Application Areas

HDPE geomembrane is the preferred solution when strong, long lasting containment is required.

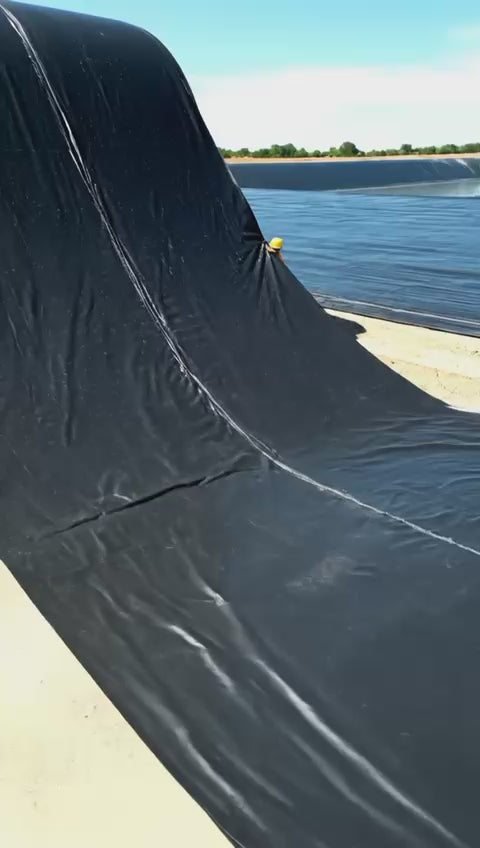

HDPE geomembrane widely used in lake, artificial lake, damn and landfill projects to isolate waste and protect soil and groundwater from contamination.

Poly liner performs reliably in mining operations, containing chemicals and process fluids under demanding conditions.

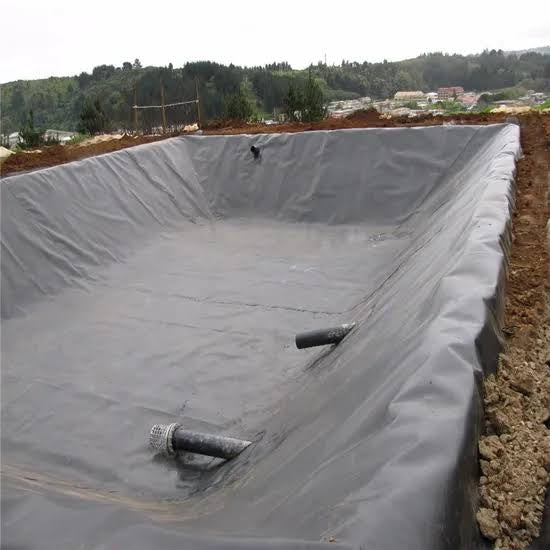

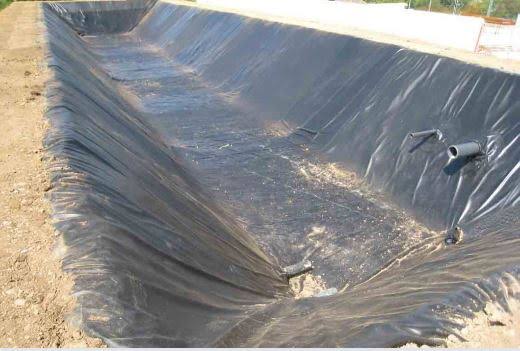

HDPE geomembrane poly liner is commonly used in ponds, irrigation systems, and water reservoirs to create a secure and durable waterproof barrier.

Geomembrane poly liner is applied in industrial facilities for lining tanks, lagoons, and storage areas where leak prevention is critical.

HDPE geomembrane delivers consistent performance in environmental protection projects where durability and chemical resistance are essential.
