Magnetic Level Indicator

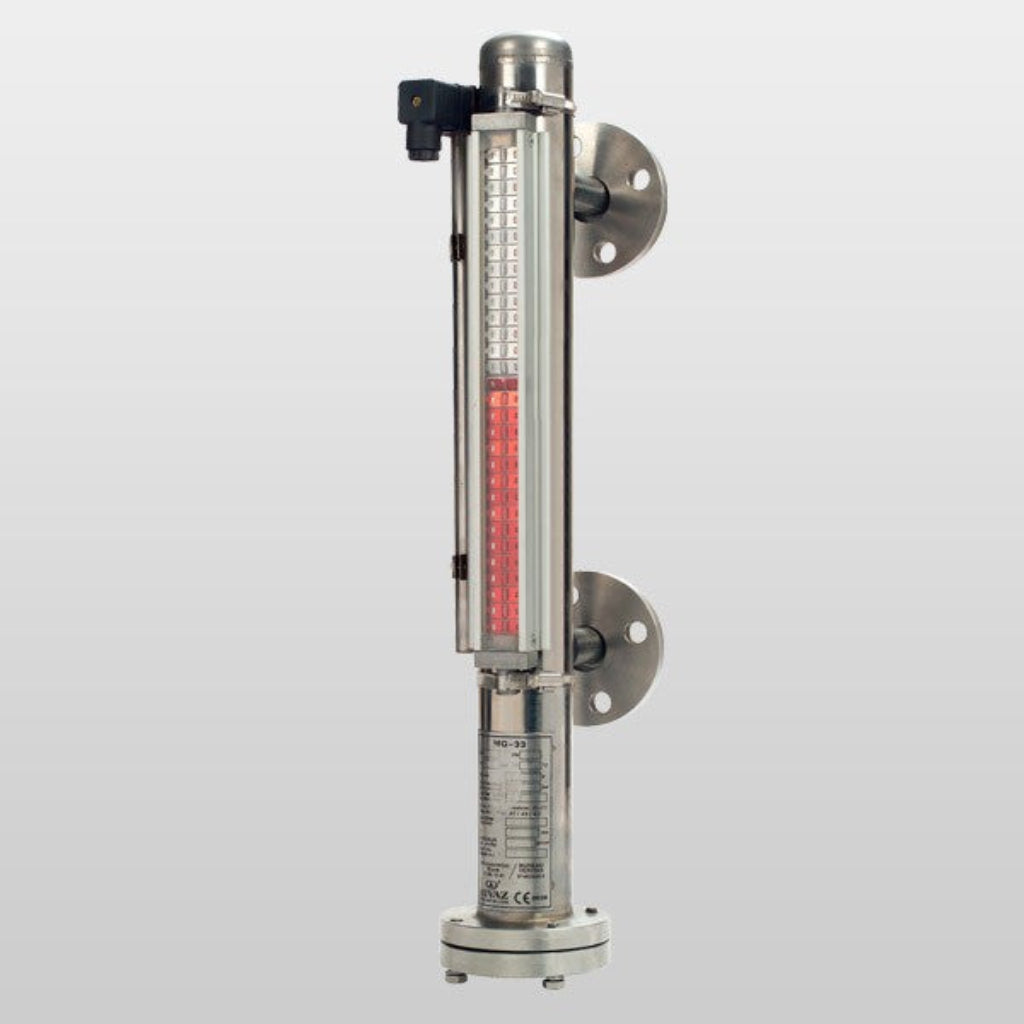

Magnetic Level Indicator  is designed for continuous liquid level monitoring in industrial tanks, boilers, and process systems requiring reliable and visual level indication.

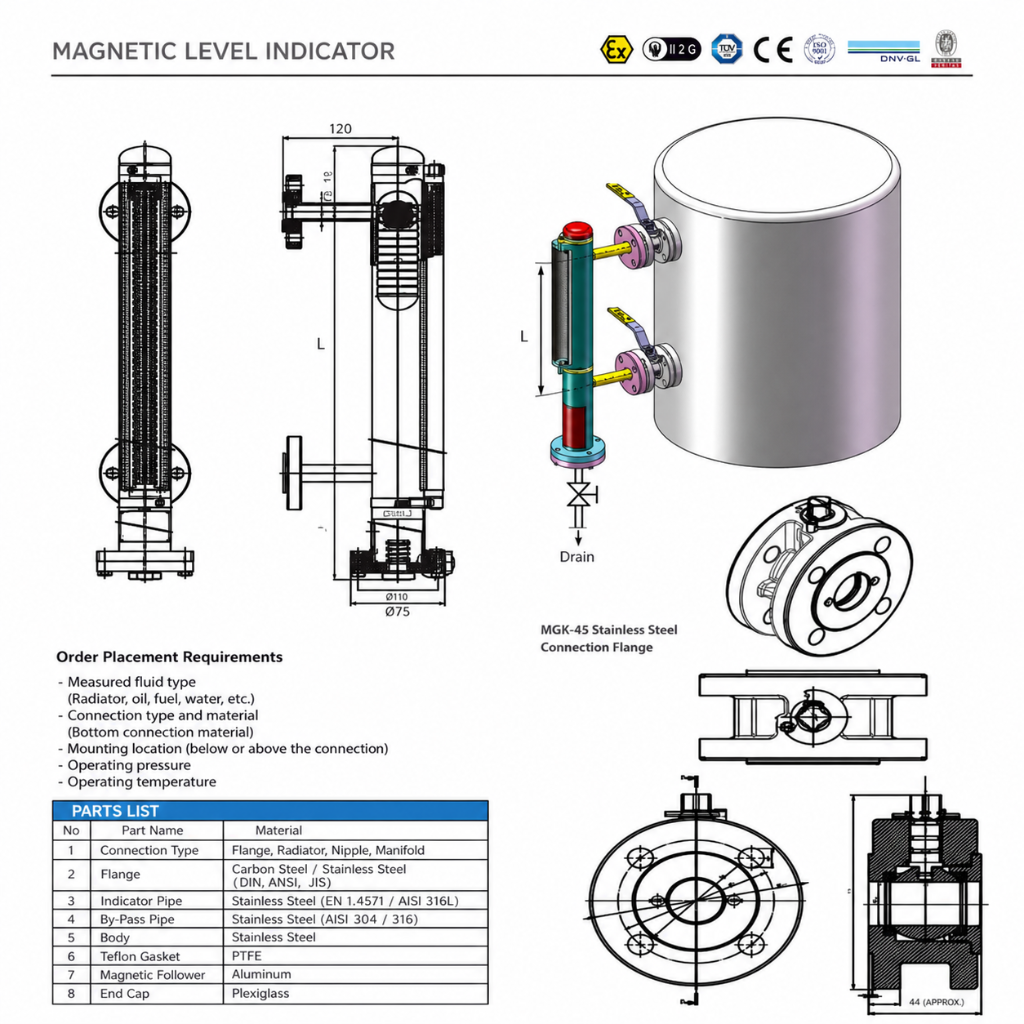

The device features a vertical chamber body mounted externally to the tank, allowing direct level tracking without contact with the process environment. The magnetic float inside the chamber moves according to liquid level changes and transmits this movement to the external indicator.

The indicator consists of a magnetic flap system that rotates to display the liquid level clearly and continuously. This system ensures accurate and maintenance-free operation without the need for external power supply.

The body is manufactured from stainless steel, providing high resistance to corrosion, pressure, and temperature. The flanges can be supplied in carbon steel or stainless steel depending on application requirements.

The operates with a maximum working pressure of 10 bar and temperature up to 200°C, making it suitable for demanding industrial applications.

Each product variant represents a specific body length, connection type, and flange material.

Magnetic level indicators are widely used in boiler systems, pressure vessels, chemical tanks, and industrial fluid storage systems where safe and clear level monitoring is required.

Applications

• Boiler systems
• Pressure vessels
• Chemical tanks
• Industrial storage tanks
• Process systems

Technical Specifications

Type: Magnetic Level Indicator
Mounting: Side mounted
Pressure: 10 bar
Temperature: 200°C
Body: Stainless Steel
Flange: Carbon Steel / Stainless Steel
Drain: 1/2"
Working Principle: Magnetic Float
