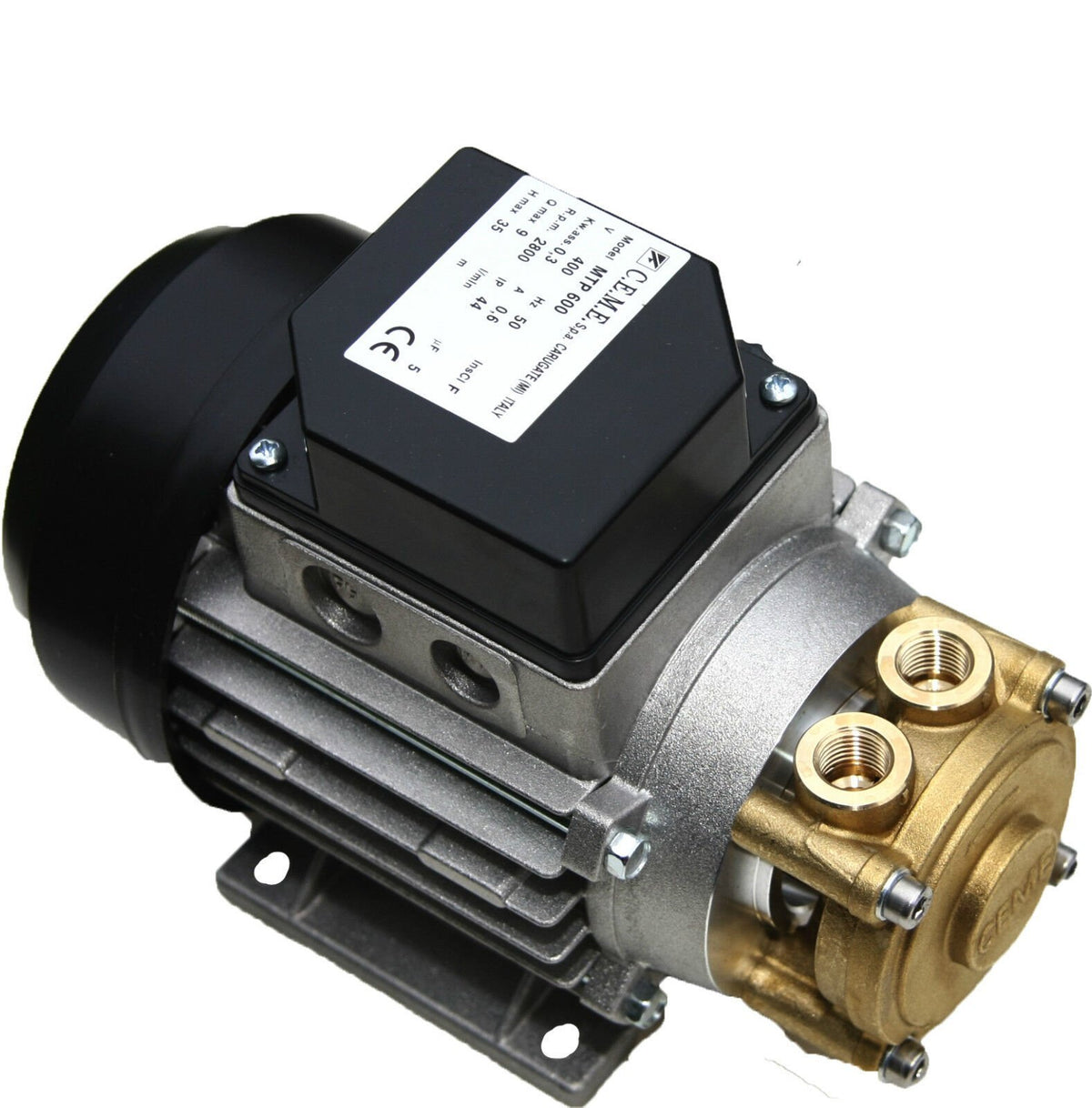

Peripheral Pump 1/4" (MTP600 Series)

Peripheral Pump 1/4" (MTP600 Series) is designed for compact fluid circulation and cooling applications requiring stable pressure and continuous operation.

The pump operates based on a peripheral impeller mechanism, enabling relatively high pressure output at low flow rates within a compact structure. It is not self-priming and must be installed in systems where fluid is already present.

The pump body is manufactured from brass, while internal components include stainless steel shaft and mechanical sealing elements such as ceramic and graphite. This construction ensures durability and resistance to wear in continuous operation.

The unit operates on 230V or 400V depending on the selected model and is typically used in industrial equipment where reliable circulation is required.

Each product variant represents different voltage and model configurations.

MTP600 pumps are widely used in welding cooling systems, industrial machines, circulation systems, and compact fluid transfer applications.

APPLICATIONS

• Welding cooling systems
• Industrial machines
• Fluid circulation systems
• Compact cooling applications

TECHNICAL SPECIFICATIONS

Type: Peripheral Pump
Series: MTP600
Connection: G 1/4"
Voltage: 230V / 400V
Frequency: 50 Hz
Material: Brass Body
Seal: Mechanical (Ceramic / Graphite)
Max Fluid Temp: 80°C
Operation: Continuous / Intermittent
Priming: Non Self-Priming
