Precision Measurement and Inspection Tool Set – 12 Pieces

Designed for workshops where accurate measurement and practical inspection need to work together, this 12-piece measurement set brings a broad selection of essential tools into one organized collection. The set combines direct measuring instruments with gauges and reference tools, allowing users to check dimensions, clearances, thread profiles, radii, angles, squareness and positioning during manufacturing, assembly and maintenance work.

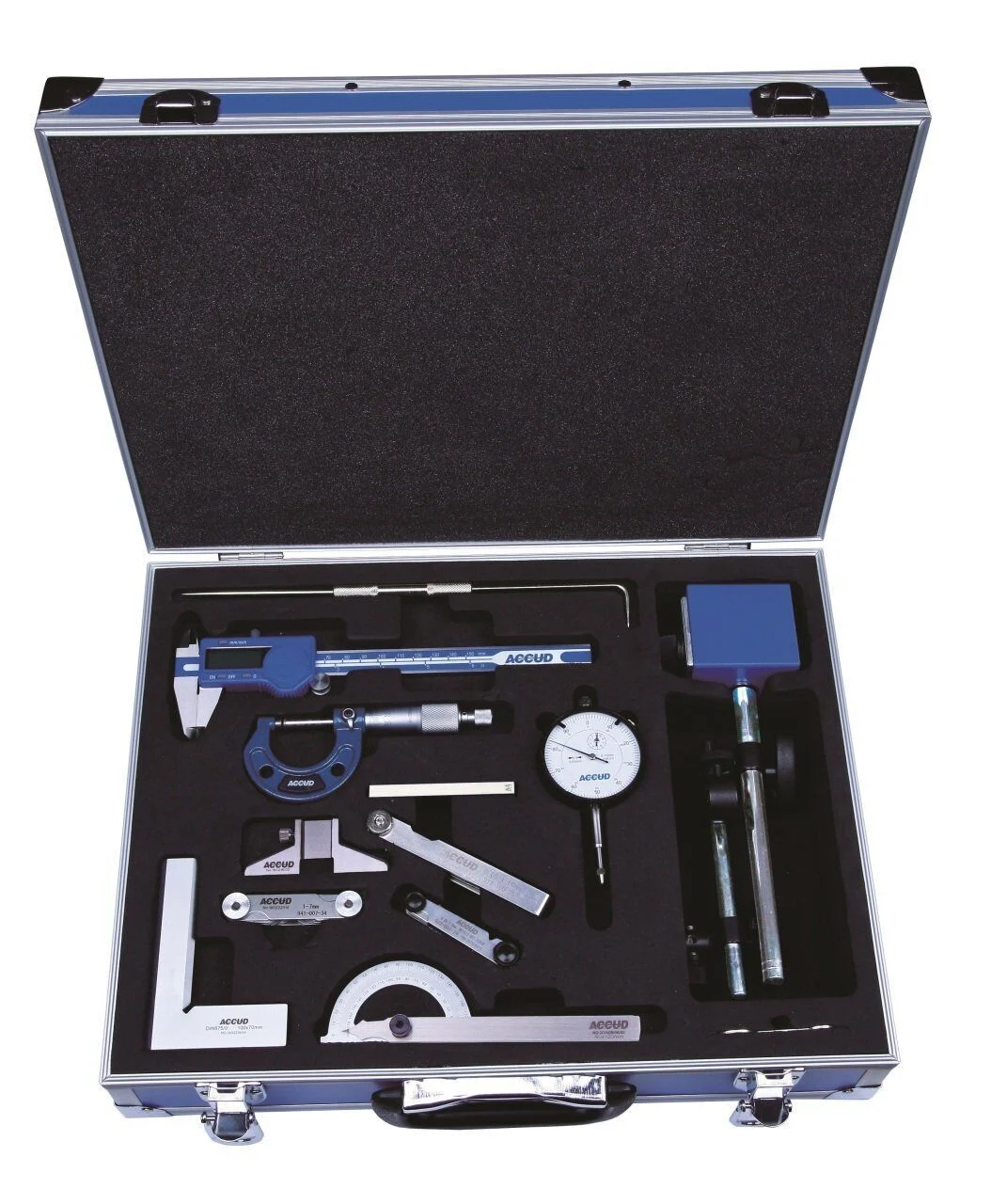

What’s in the Box

Key Features

• Multiple Measurement Methods: Combines direct measurement, comparative inspection and physical gauges within one set.
• 150 mm Digital Caliper: Suitable for routine dimensional checks across a wide range of workshop applications.
• 0 to 25 mm Outside Micrometer: Provides a dedicated instrument for controlled external dimension measurement.
• 10 mm Dial Indicator with Magnetic Stand: Allows small positional changes and dimensional deviations to be observed from a stable reference point.
• Metric Thread Identification: 24-piece thread gauge covers pitches from 0.25 to 7.00 mm.
• Clearance Checking: 20-piece feeler gauge covers thicknesses from 0.05 to 1.00 mm.
• Angle and Squareness Verification: Angle gauge and 90° engineer square for checking angular relationships and perpendicularity.
• Profile Inspection: Radius gauge allows curved profiles to be compared against defined radius references.

Application Areas

• CNC machining and metalworking
• Mechanical workshops and toolmaking
• Dimensional inspection and quality control
• Machine maintenance and mechanical assembly
• Fabrication and engineering workshops
• Thread identification and clearance inspection
• Angle verification and radius checking
• Workshop marking

FAQ

What is included in the 12-piece measurement set?
The set includes a digital caliper, outside micrometer, dial indicator, magnetic stand, angle gauge, thread pitch gauge, radius gauge, feeler gauge, engineer square, scriber, depth bridge and zero setting bar.

What is the maximum range of the digital caliper?
The digital caliper has a measurement range of up to 150 mm.

What is the micrometer range?
The outside micrometer covers measurements from 0 to 25 mm.

What thread pitches can be checked?
The included 24-piece thread pitch gauge covers 0.25 to 7.00 mm.

What is the feeler gauge range?
The set includes 20 blades covering 0.05 to 1.00 mm.

Is a magnetic stand included?
Yes. The set includes a magnetic stand for positioning the dial indicator during comparative inspection.

Can this set be used for CNC work?
Yes. Its combination of dimensional measuring instruments, gauges and reference tools makes it suitable for CNC machining and general manufacturing inspection.

Is this a calibration set?
No. This is a measurement and inspection tool set, not a certified calibration set unless separate calibration documentation is supplied.
