Pressure Reducing Valve
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
Shipping and Delivery Process
Return Process
Product Details
Pressure Reducer Valve

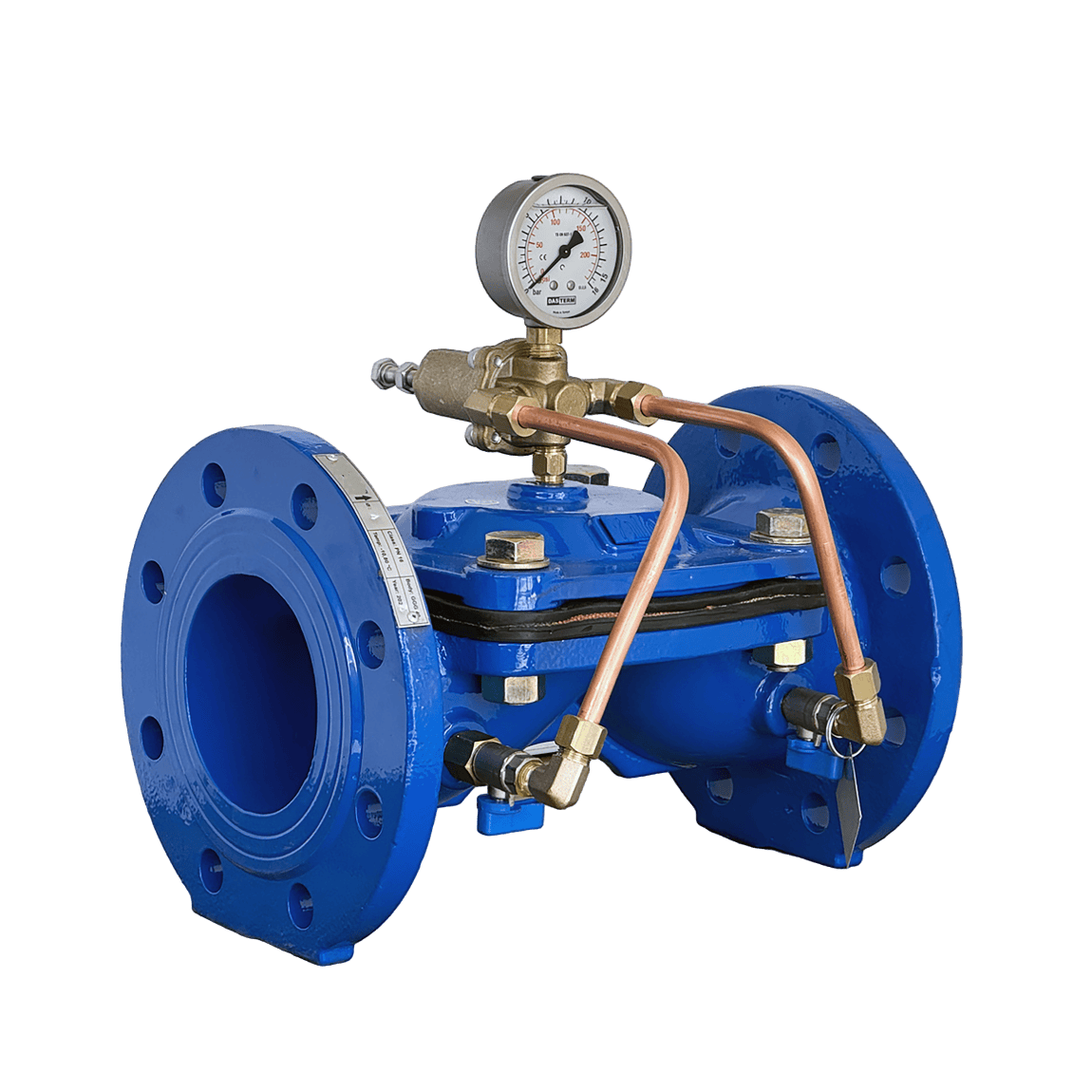

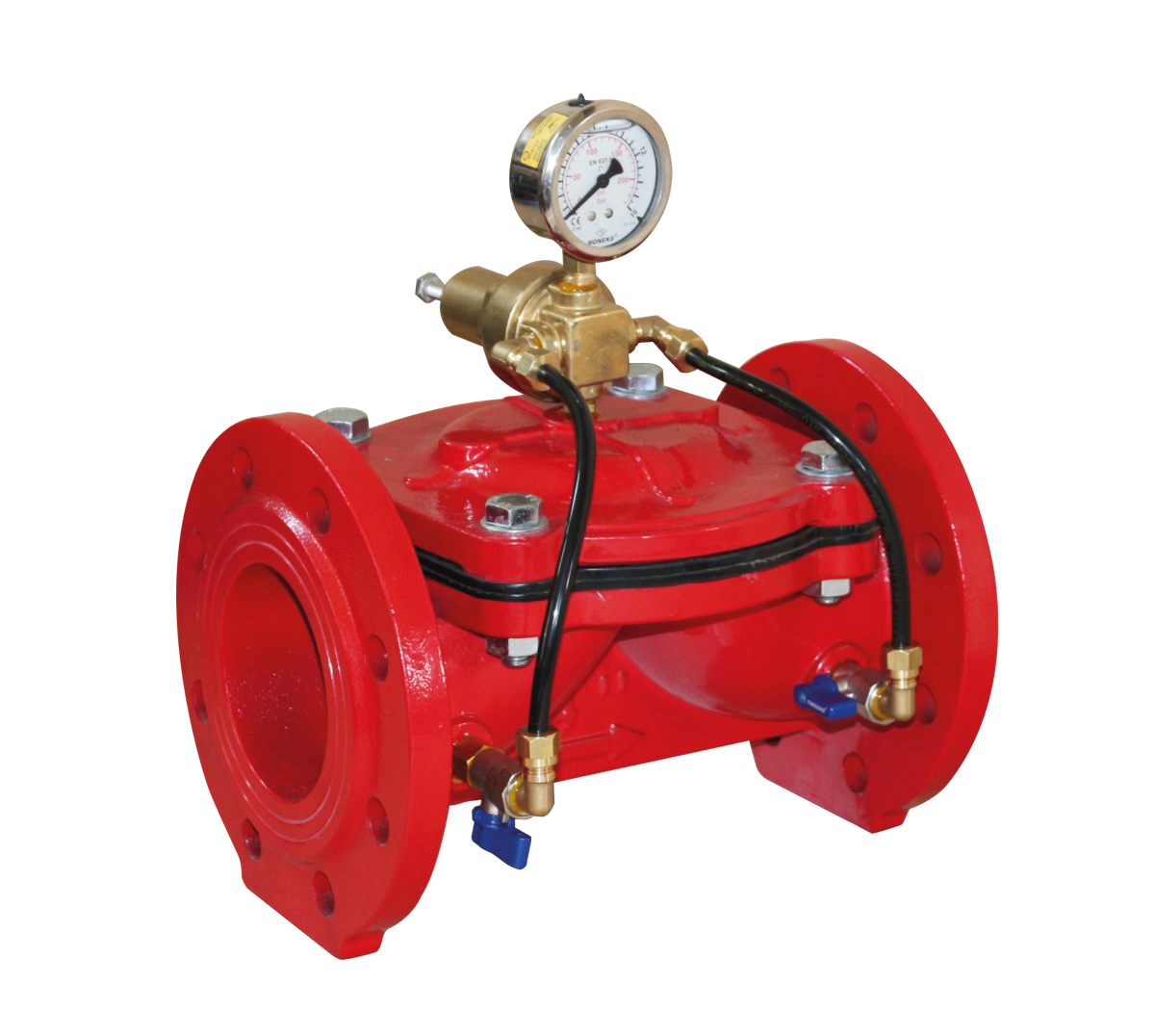

Pressure Reducing Valve is designed to automatically regulate and stabilize downstream pressure in pipeline systems, ensuring safe and efficient operation under variable inlet pressure conditions.
The valve features a robust EN-GJL-250 (GG25) cast iron body and cover, providing high mechanical strength and long service life. The internal control mechanism utilizes a fabric-reinforced natural rubber diaphragm, delivering precise pressure control and durability against cyclic loading.
This diaphragm-type pressure reducing valve operates without external energy, using system pressure to modulate flow and maintain a constant outlet pressure.
Suitable for water distribution networks, industrial piping systems, irrigation systems, and infrastructure projects where pressure stabilization is critical.
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | DN50 – DN300 |
| Pressure Rating | PN16 |
| Body Material | EN-GJL-250 (GG25) Cast Iron |
| Cover Material | EN-GJL-250 (GG25) Cast Iron |
| Diaphragm | Fabric Reinforced Natural Rubber |
| Bolts & Studs | Carbon Steel |
| Nuts | Carbon Steel |
| Spring | Stainless Steel (SST 302) |
| Washer | Steel |
| Spring Ring | Polyamide |
Size Table
| DN (inch) | DN (mm) | L (mm) | D (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 2" | 50 | 204 | 165 | 165 | 15 |
| 2½" | 65 | 206 | 185 | 185 | 16.5 |
| 3" | 80 | 290 | 200 | 200 | 26 |
| 4" | 100 | 296 | 220 | 220 | 28 |
| 5" | 125 | 314 | 250 | 250 | 33 |
| 6" | 150 | 413 | 285 | 321 | 57 |
| 8" | 200 | 470 | 340 | 403 | 85 |
| 10" | 250 | 470 | 407 | 433 | 103 |
| 12" | 300 | 530 | 466 | 497 | 145 |
