Slotted Spring Pin
- Regular price
- $29.13
- Sale price
- $29.13
- Regular price
Shipping and Delivery Process
Return Process
Product Details

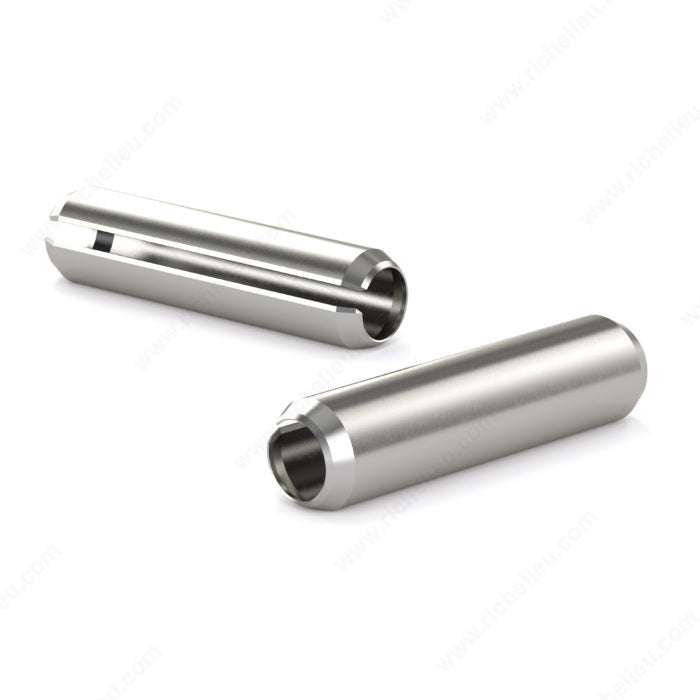

Slotted Spring Pins, also known as split pins or roll pins, are hollow cylindrical fasteners with a longitudinal slot that allows them to compress during installation and spring back to exert a constant radial force against the hole wall. This self-locking action provides a secure, vibration-resistant fit without the need for additional locking elements.
Manufactured to DIN 1481 standard from high-carbon spring steel or stainless steel, these pins are widely used in mechanical assemblies, automotive components, agricultural machinery, and general engineering applications where reliable, reusable fastening in shear and alignment applications is required.
The slotted design allows for easy installation with a pin punch and removal without damaging the surrounding material, making them ideal for assemblies that require periodic disassembly and maintenance.
Technical Details
- Standard: DIN 1481 / ISO 8752
- Type: Slotted (heavy duty) spring pin
- Material: Carbon spring steel / Stainless Steel A1 (AISI 302)
- Finish: Plain / Phosphate / Stainless
- Hardness: 420–530 HV (carbon steel)
- Application: Shear pins, alignment pins, locking pins in mechanical assemblies
- Each package contain 10 number of Slotted Pins
Product Sizes of DIN 1481 Slotted Spring Pin
| Diameter | Length Range (mm) |
|---|---|
| D1 | 4-20 |
| D1.5 | 4-20 |
| D2 | 4-30 |
| D2.5 | 4-30 |
| D3 | 4-50 |
| D3.5 | 4-40 |
| D4 | 4-50 |
| D4.5 | 5-50 |
| D5 | 5-50 |
| D6 | 10-50 |
| D8 | 10-50 |
| D10 | 10-50 |
| D12 | 10-50 |
| D13 | 10-50 |
| D14 | 10-50 |
| D16 | 10-50 |
| D18 | 10-50 |
| D20 | 10-50 |
| D21 | 14-50 |
| D25 | 14-50 |
| D28 | 14-50 |
| D30 | 14-50 |
| D32 | 20-50 |
| D35 | 20-50 |
| D38 | 20-50 |
| D40 | 20-50 |
| D45 | 20-50 |
| D50 | 20-50 |
