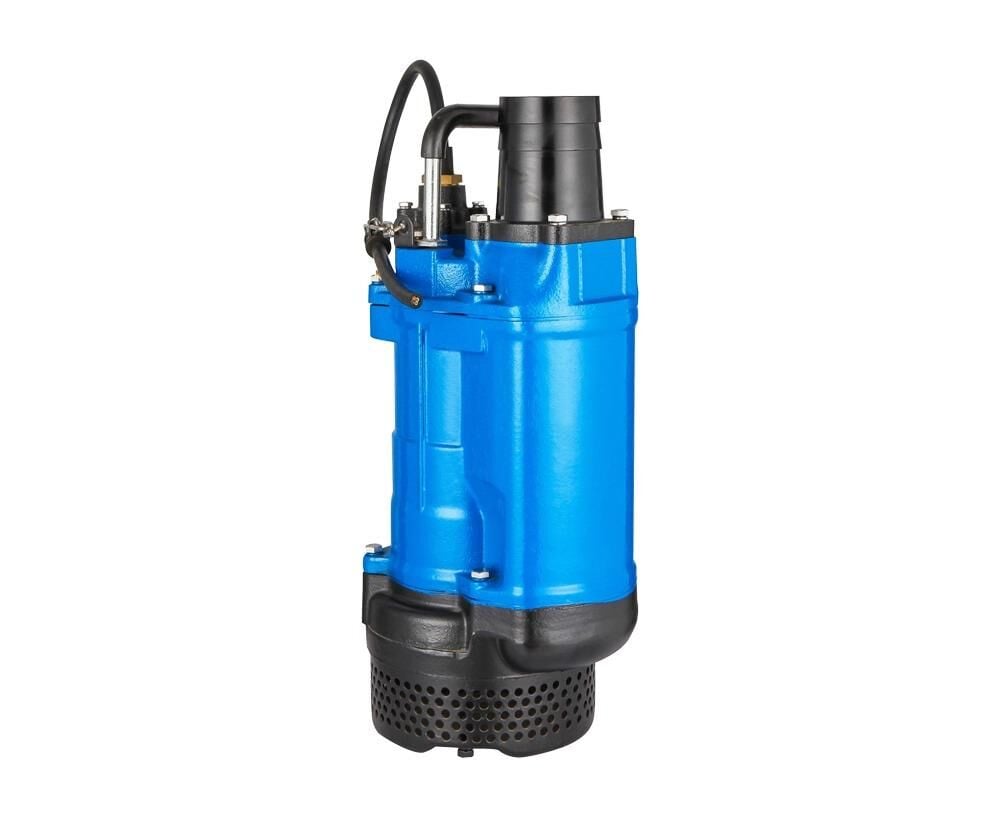

Submersible Drainage Pump
- Regular price
- $165.00
- Sale price
- $165.00
- Regular price
Shipping and Delivery Process
Return Process
Product Details
Submersible drainage pumps are engineered for efficient transfer of clean and slightly contaminated water in residential, commercial, and industrial environments. Designed for fully submerged operation, these pumps ensure high performance, low noise, and long service life.
Equipped with automatic float switches, thermal protection, and corrosion resistant materials, they provide reliable and maintenance friendly operation. Open and vortex impeller options allow safe handling of particles without clogging.
Technical Specifications
|
Parameter |
Value |
|
Pump Type |
Submersible Drainage Pump |
|
Protection Class |
IP68 |
|
Insulation Class |
Class F |
|
Speed |
2900 rpm |
|
Frequency |
50 Hz |
|
Liquid Temperature |
0 - 30°C |
|
Cooling |
Water / Oil Cooled |
|
Operation |
Automatic Float Switch |
Submersible Pump Techical Chart
|
Power (kW) |
Voltage |
Flow (m³/h) |
Head (m) |
Particle Size |
Outlet (inch) |
Cable |
|
0.25 |
220V |
3.5 – 7 |
6 – 10 |
≤ 3 mm |
1 inch |
10 m |
|
0.55 |
220V |
6 – 10.5 |
8 – 14 |
≤ 5 mm |
1 inch |
10 m |
|
0.75 |
220V |
8 – 15 |
10 – 16 |
≤ 10 mm |
1.25 inch |
10 m |
|
1.1 |
220V / 380V |
12 – 20 |
12 – 20 |
≤ 15 mm |
1.5 inch |
10 m |
|
1.5 |
380V |
15 – 28 |
15 – 24 |
≤ 20 mm |
2 inch |
10 m |
|
2.2 |
380V |
20 – 35 |
18 – 28 |
≤ 25 mm |
2 inch |
10 m |
|
4.0 |
380V |
30 – 49 |
22 – 32 |
≤ 30 mm |
2.5 inch |
10 m |
Material Specifications
|
Component |
Material |
|
Pump Body |
PPH / Cast Iron GG25 / Stainless Steel |
|
Impeller |
Noryl / Cast Iron / Stainless Steel |
|
Shaft |
AISI 304 / AISI 420 |
|
Mechanical Seal |
Silicon / Carbon |
