Threaded Mechanical Tee, Ductile Iron Outlet Fitting
- Regular price
- $590.00
- Sale price
- $590.00
- Regular price
Shipping and Delivery Process
Return Process
Product Details

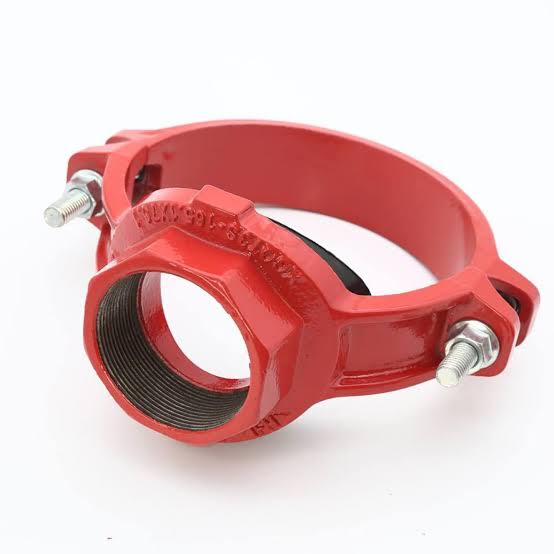

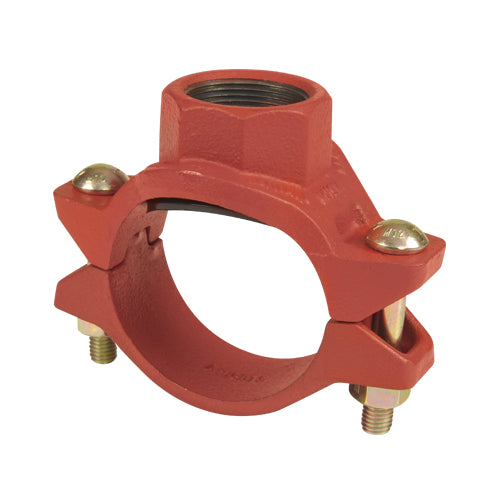

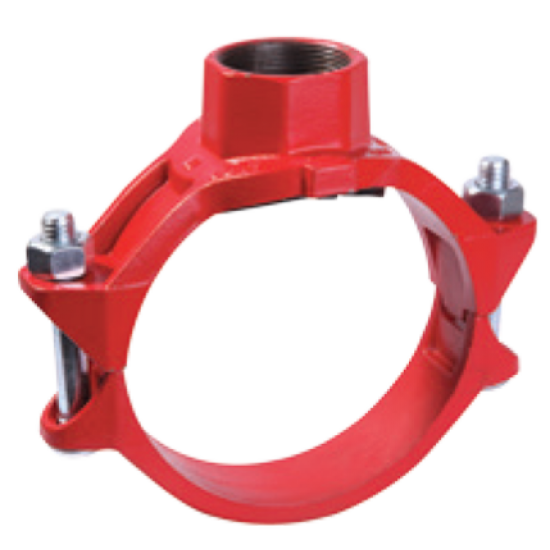

Threaded Mechanical Tee is a practical pipe connection fitting designed to create a threaded outlet from an existing pipeline without welding or cutting operations. This mechanical tee provides a fast and secure branching solution, especially in systems where installation speed and flexibility are critical.
Mechanical Tee manufactured from high strength ductile iron, the body ensures durability under pressure and mechanical loads. The EPDM sealing gasket guarantees leak-tight performance while maintaining resistance to temperature changes and water applications.
The integrated threaded outlet allows direct connection of valves, instruments, or sprinkler systems, making it highly suitable for fire protection and utility installations. The system is completed with high strength coated bolts and nuts to ensure uniform clamping and long term reliability.
Technical Specifications
Main Pipe Range: DN50 – DN200
Outlet Type: Female Threaded Outlet
Working Pressure: up to 300 psi (20.6 bar)
Connection Type: Mechanical clamp connection with threaded branch
Material Details:
- Body: Ductile Iron
- Coating: Fusion Bonded Epoxy (FBE)
- Gasket: EPDM
- Bolts & Nuts: High-strength coated steel
Standards & Certifications:
- UL Listed
- FM Approved
Size & Dimension Chart
| Main Pipe OD (mm) | DN | Outlet Size (inch) | Hole Size (mm) | X (mm) | Y (mm) | Z (mm) | W (mm) | Bolt Size |
|---|---|---|---|---|---|---|---|---|
| 60.3 | 50 | ½” | 30.5 | 125 | 148 | 66 | 66 | M10x40 |
| 60.3 | 50 | ¾” | 30.5 | 125 | 148 | 66 | 66 | M10x40 |
| 60.3 | 50 | 1” | 38 | 135 | 150 | 68 | 68 | M10x40 |
| 76.1 | 65 | 1” | 38 | 150 | 170 | 70 | 70 | M10x40 |
| 76.1 | 65 | 1¼” | 44 | 155 | 175 | 72 | 72 | M10x40 |
| 88.9 | 80 | 1” | 38 | 165 | 190 | 72 | 72 | M12x70 |
| 88.9 | 80 | 1½” | 48 | 170 | 195 | 75 | 75 | M12x70 |
| 114.3 | 100 | 1½” | 48 | 190 | 220 | 78 | 78 | M12x70 |
| 114.3 | 100 | 2” | 60 | 195 | 225 | 80 | 80 | M12x70 |
| 139.7 | 125 | 2” | 60 | 220 | 260 | 85 | 85 | M12x85 |
| 139.7 | 125 | 2½” | 73 | 225 | 265 | 88 | 88 | M12x85 |
| 165.1 | 150 | 2½” | 73 | 250 | 290 | 90 | 90 | M16 |
| 165.1 | 150 | 3” | 89 | 255 | 295 | 95 | 95 | M16 |
| 219.1 | 200 | 3” | 89 | 300 | 340 | 105 | 105 | M16 |
| 219.1 | 200 | 4” | 114 | 310 | 350 | 110 | 110 | M16 |
Application Areas of DI Mechanical Tee
Mechanical Tee fittings used in pipeline systems, fire protection systems, sprinkler installations, instrumentation connections, and utility piping networks.
Applied for creating branch connections without welding or pipe cutting.
Suitable for retrofit installations and maintenance operations.
