U Bolt Pipe Clamp

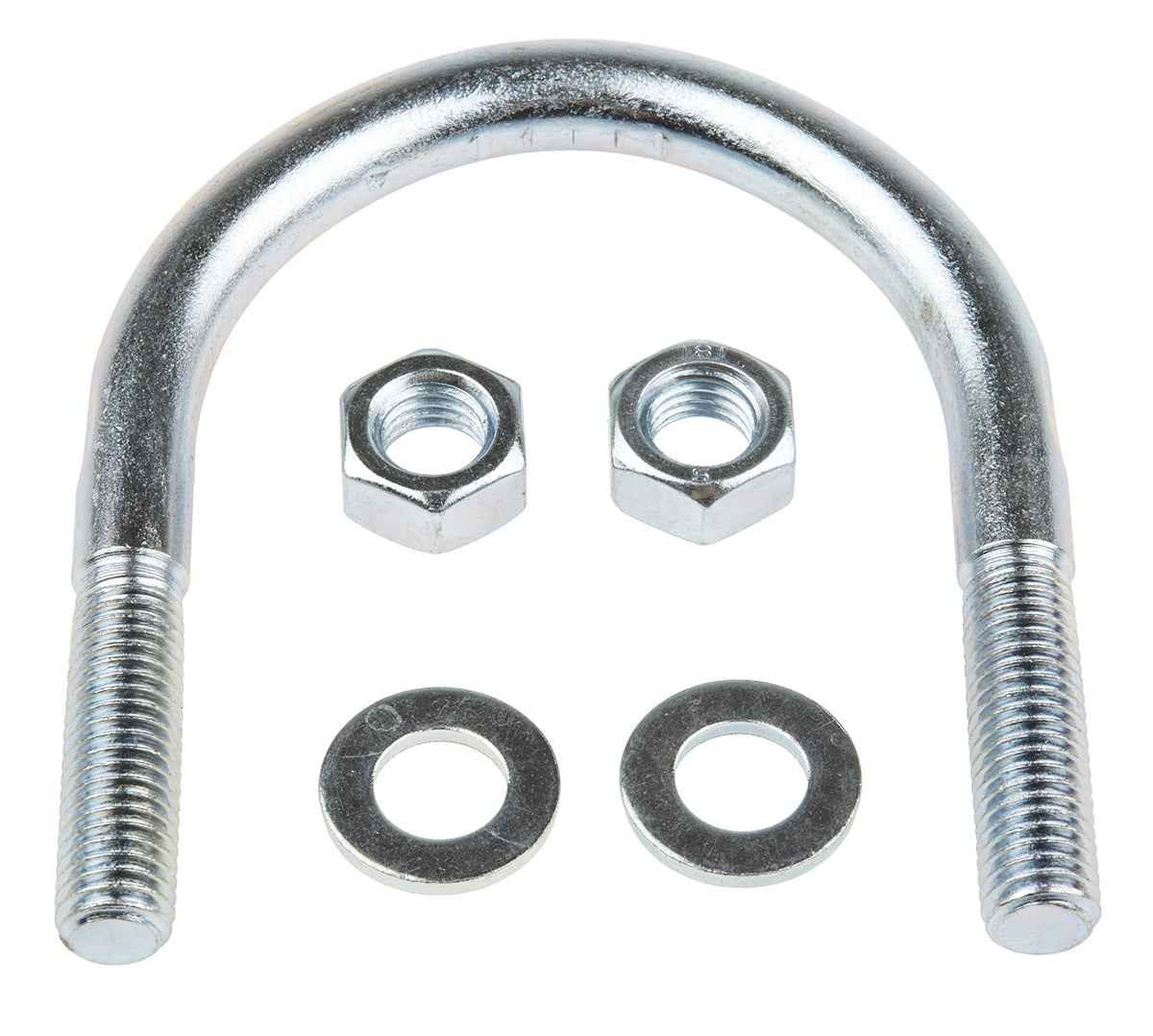

U Bolt Pipe Clamps are heavy duty fastening components designed to secure pipes, tubes, and cylindrical objects to a surface or structure. The U-shaped bolt wraps around the pipe while the two threaded ends pass through a mounting plate or bracket, secured with nuts for a firm and stable hold.

Manufactured to DIN 3570 standard, these clamps are widely used in plumbing, HVAC systems, industrial piping, structural applications, and mechanical installations where reliable pipe support is essential.

With a wide size range from 1/2” to 20”, U bolts can accommodate different pipe diameters, offering flexibility across multiple systems. The threaded ends allow easy installation with nuts, ensuring a firm and stable connection.

Available in various materials including carbon steel, stainless steel (A2/A4), and hot-dip galvanized versions for enhanced corrosion resistance in demanding environments.

Technical Details

• Standard: DIN 3570
• Thread Type: Metric coarse thread
• Material: Carbon Steel / Stainless Steel A2-A4 / Hot-Dip Galvanized
• Finish: Zinc plated, HDG, Plain
• Application: Pipe support, tube clamping, structural fastening


U Bolt Size Table
