Universal Flange Adapter

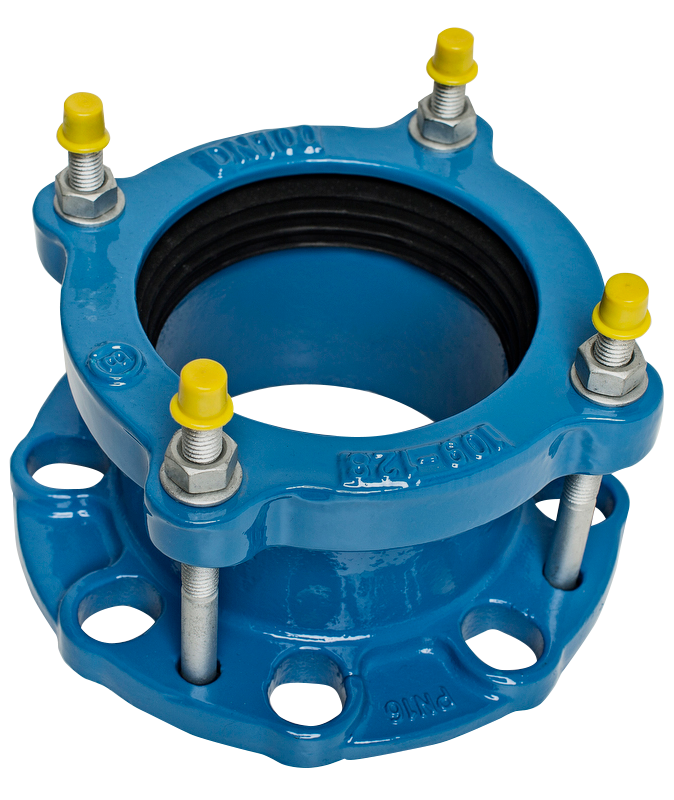

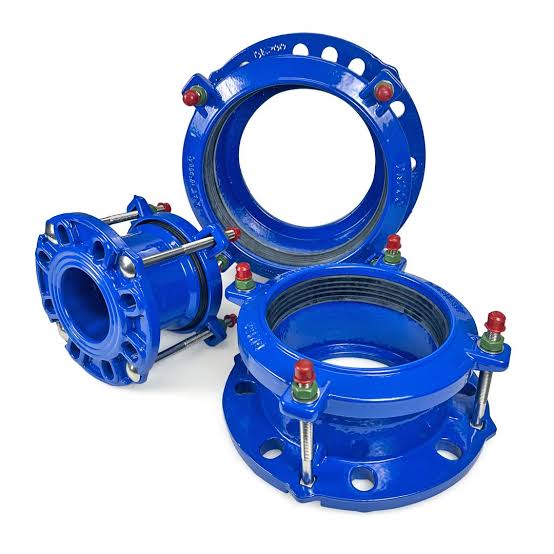

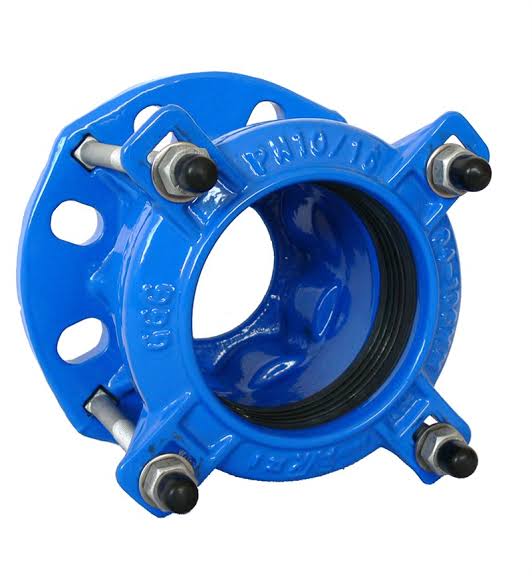

Universal Flange Adapter PN16 is a high-performance mechanical coupling designed to connect plain-end pipes to flanged systems with maximum flexibility. This wide tolerance adapter allows installation across a range of pipe diameters (SR1 tolerance), making it ideal for repair, maintenance, and new pipeline installations.

The body is manufactured from high-strength ductile iron, ensuring durability under pressure and mechanical stress. The sealing system features WRAS-approved EPDM gasket, providing reliable leak-tight performance for potable water and infrastructure applications.

The adapter is equipped with Sheraplex-coated steel bolts and nuts (Grade 8.8), offering superior corrosion resistance and long service life even in aggressive environments.

Suitable for PN16 pressure class systems, this universal flange adapter complies with ISO 7005-2 and ANSI B16 drilling standards, enabling compatibility with multiple flange types.

Technical Specifications

Nominal Diameter Range (DN): 50 – 400 mm
Pressure Class: PN16
Connection Type: Plain pipe to flanged connection
Tolerance (SR1 Clamping Range): Wide range (varies by DN)

Main Dimensions:

• Length (L): 159 – 226 mm
• Flange Diameter (D): 172 – 597 mm
• Bolt Length Sections (L1, L2, L3): Defined per DN

Material Details:

• Body: Ductile Iron (EN-GJS-450-10)
• Flange: Ductile Iron
• Gasket: EPDM (WRAS approved)
• Bolts & Nuts: Steel 8.8, Sheraplex coated
• Washer: Galvanized Steel

Standards:

• ISO 7005-2
• ANSI B16
• BS Drilling Standard

Size & Dimention Table

Application Areas

Used for water supply pipelines, wastewater systems, irrigation networks, industrial piping systems, and infrastructure projects requiring flexible flange connections.
Applied for repair works, pipeline extensions, and mixed material connections.
Suitable for potable water systems thanks to EPDM sealing compliance.
